5 gallons Water filling machine line
Customized solutions | Capacity 3,000 bottles/hour | GMP/FDA compliant | 5 gallon filling machine

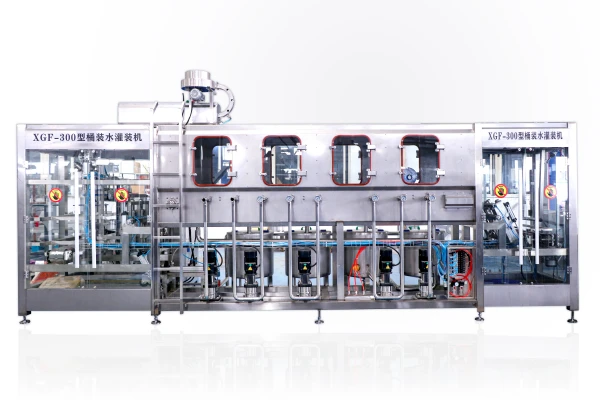

Efficient 5 Gallon Filling Line
We have designed a highly efficient and automated production line, the 5 gallon filling machine, specifically for barreled water filling.
bottled water and large-capacity liquid packaging. It integrates cleaning, filling, capping,
We provide labeling and other functions, and widely apply it in drinking water plants, beverage companies and food processing. The 5 gallon water filling machine line adopts a modular design and supports a variety of container specifications such as
5 gallons (18.9 liters).It is suitable for materials such as PC barrels, PET barrels to meet diversified production needs.
Core process flow
High-precision 5 gallon filling machine technology
We adopt an advanced gravity filling technology to ensure that the filling error of the 5 gallon filling machine (about 18.9 liters) of liquid per barrel is ≤±0.5%, avoid leakage or insufficient filling, and improve product consistency.
Fully automated 5 gallon filling machine operation
We automate the machine process from empty barrel cleaning, disinfection, filling, capping to labeling, reduce manual intervention, and make the production efficiency reach 100-3000 barrels/hour (depending on the configuration), greatly reducing labor costs.
Multi-material compatibility
Adapt to PC barrels, PET barrels and other containers of various materials, support different barrel sizes (such as square/round barrels), can quickly change molds, and flexibly respond to diverse production needs.
Food-grade hygiene standards
Key components are made of 316 stainless steel, comply with GMP, FDA or QS certification, and are equipped with a CIP online cleaning system to ensure that the filling process is pollution-free, suitable for drinking water, beverages and other food industries.
Intelligent fault diagnosis system
Integrated PLC + touch screen control, real-time monitoring of production line status, automatic warning of abnormalities such as barrel blockage and leakage, reducing downtime, and improving maintenance efficiency by more than 30%.
Energy-saving and environmentally friendly design
Equipped with a circulating water utilization device and a low-energy power system, water and electricity consumption are reduced by 15%-20% compared with traditional production lines, in line with the trend of green production.
Water, the silent guardian of life
The human body is 70% constructed by water, which is the medium of cellular metabolism, the bridge for nutrient delivery, and the channel for toxin elimination.
Choosing a glass of truly healthy water is the most basic investment in life. Every sip of safe water is injecting energy into the cells and accumulating health chips for the future.
Water not only quenches your thirst, but also serves as a vehicle for dialog with life. From the awakening of the first glass of water in the morning to the warmth of metabolic renewal late at night, treating every drop of water well is to guard the flow of vitality.
Technical parameters
| Full Automatic Complete 60-1200BPH 3-5 gallon Barrel Filling Production Line | Mineral Water / Pure Water | |||
| Material | Shape | Filling Volume | Filling Type | Conveyor Mode |
| PC / PET | Round | 5 Gallon | Gravity filling Normal temperature | Conveyor belt |
| Adjustable Specifications of Bottle Type | Size of Barrel : ф276×490mm | |||
| Customers need to buy additional change-over parts for the different bottles. If using square bottles, then bottle separating system will be added. |
||||
| Container Label & Control Mode | Sticker Label / PVC shrink sleeve label | |||
| User Ambient Conditions | Temperature: 10~40℃ Humidity: No dew | |||
| User Electrical Supply Specification | Voltage: 380V±5% 3phase Frequency: 50HZ±1% | |||
