Juice with Pulp Hot Filling Line
Premium Juice Bottling Filling Machine – High-Temperature Sterilization, Hot Filling & Maximum Shelf Life for Your Beverage Business!
CHOOSE YOUR SOLUTION
Glass Bottle Juice Pulp Filling Line
PET Bottle Juice Pulp Filling Line
Can Pulp Filling Line
Product Description
- Products: Energy drinks, juices,coffee,milk
- Packaging: Glass bottle,PET bottle,Can
- Capacity: 1000-54000BPH
- Supplying water treatment system, beverage mixing system, filling and post-packaging system etc, one-stop service
- This bottling filling machine uses hot filling, making it suitable for complete fruit juice production—from fresh juice and concentrated powder blending to pulp filling production lines.
Product Knowledge
OF Sokos Machinery Juice with Pulp Hot Filling Line
In today’s booming fast-moving consumer goods industry, juice drinks are favored for their health and convenience. As the main packaging container for juice, the canning process places high demands on the accuracy, hygiene standards, and production efficiency of the bottling filling machine.
As a pioneer in liquid packaging technology with over 26 years of expertise, Sokos Machinery specializes in designing and manufacturing premium filling equipment for the global beverage industry. While we’re renowned for our advanced water filling systems, our engineering excellence extends to complete juice packaging solutions.
1.Automatic Juice Filling Machine adopt Rinsing / Filling / Capping 3-in-1 technology, PLC control, Touch Screen, it is mainly made of SUS304/ SUS316.
2. It can apply to fill hot fruit juice, tea and other beverageinto thermal proof glass bottle by changing few spare parts.
3. Its usual production capacity is in 1,000-32,000bph, 0.25-2L glass bottle is available.
4. Pivotal electrical parts use Siemens, Schneider, ABB,etc.
5. Filling accuracy is more or less than 1%.
6. The filling solution giving attention to the color and taste and keeping natural, green , health, nutrition flavor without preservatives and additives brings consumers brand-new and visual sense and comfortable drinking pleasure.
Product Details

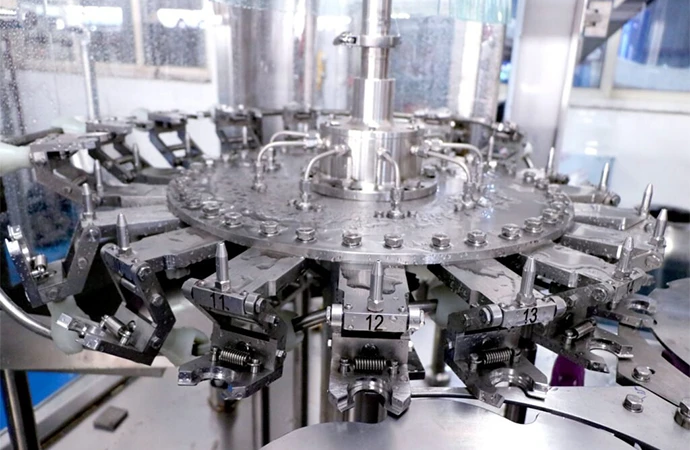

WASHING HEADS
Air conveyor connects directly to the bottle starwheel for smooth and stable bottle infeed
Rinse heads feature spray-injection design for effective cleaning and lower water consumption
Grippers with plastic pads reduce bottle collisions during the rinsing process
Robust stainless steel wash pump enhances machine durability and reliability

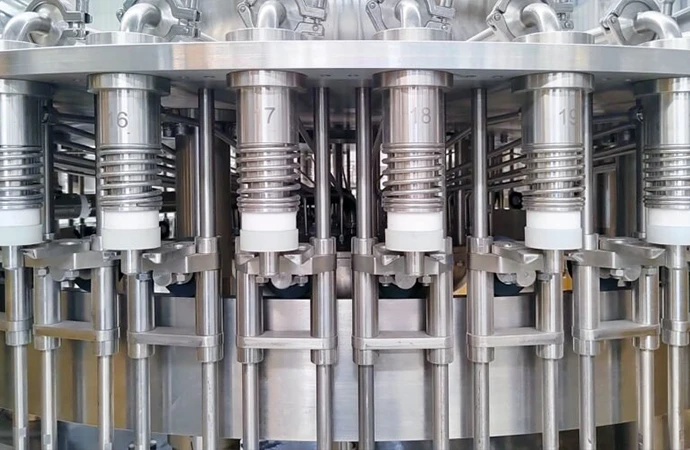

PULP FILLING HEADS
The bottling filling machine features high-precision filling nozzles to ensure accurate and consistent filling every time.
Finely adjustable filling volume maintains uniform liquid levels
Stainless steel contact parts and liquid tank with fine polishing, no dead angles, easy to clean
Durable stainless steel filling pump for stable and hygienic operation
Efficient spray nozzles provide thorough rinsing while conserving water

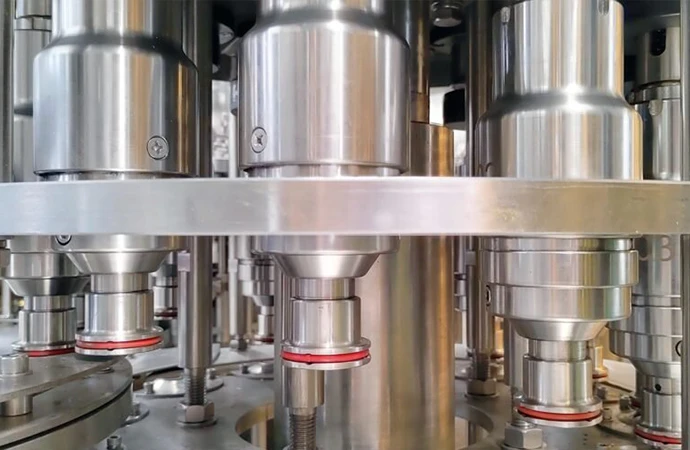

FILLING HEADS
Material: All wetted parts and liquid tank constructed from corrosion-resistant 304/316 stainless steel, mirror-polished for smooth surfaces with no dead corners, ensuring easy cleaning and hygiene.
Precision Performance: Adjustable filling volume with fine-tuned increments, delivering consistent liquid levels across containers.
Durability: Robust 304/316 stainless steel filling pump for reliable operation.
Efficient Cleaning: Integrated spray nozzle enables thorough, water-efficient flushing to minimize downtime and maintenance.
CAPPING HEADS
Electromagnetic Capping Heads: Gentle yet secure capping with burden discharge function, minimizing bottle damage during operation.
No Bottle, No Capping: Intelligent detection ensures capping only occurs when bottles are present, reducing waste.
Auto-Stop Protection: System halts automatically during bottle shortages to prevent errors.
High Precision & Reliability: Stable capping performance with a defective rate ≤0.2%.
Hygienic Design: Full 304/316 stainless steel construction, corrosion-resistant and easy to clean.

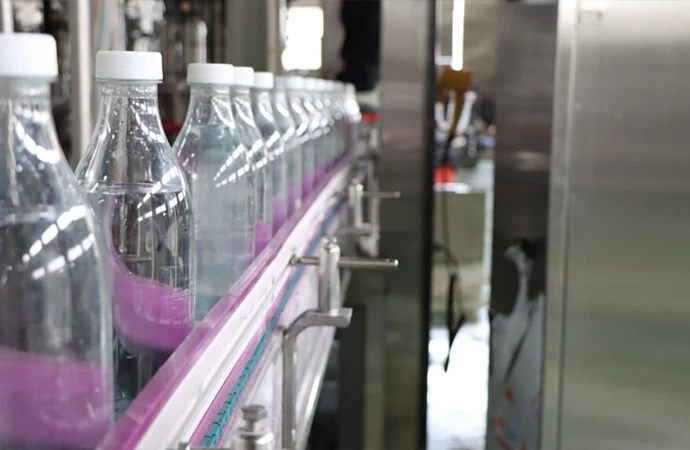

SCREW BOTTLE INFEED
1.Precise Bottle Alignment
The screw infeed system is designed to align bottles accurately as they move through the conveyor system. This precise alignment ensures that each bottle is correctly positioned for the filling process, reducing the risk of misfilling and ensuring consistent product quality.
2.Efficient Handling of Various Bottle Sizes
This system is flexible and can handle a range of bottle sizes and shapes, especially those with necks or shoulders that require more specific handling. The screw conveyor can be adjusted to accommodate different bottle specifications, making it suitable for varied juice packaging.
3.Automated and Continuous Feeding
The screw conveyor allows for continuous, automated bottle feeding into the filling machine, ensuring a consistent flow of bottles without manual intervention. It integrates seamlessly with the rest of the filling line, improving overall productivity.

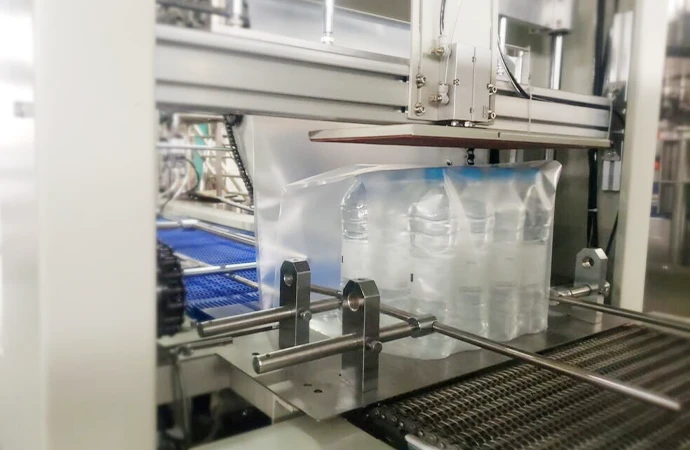

Packaging Machine
- Energy-Saving & High Efficiency – Optimized performance with low power consumption, adaptable to your factory layout for seamless integration.
- Hygienic Lubrication System – Special design ensures no contamination, maintaining product cleanliness, health, and safety.
- Long-Lasting Durability – Robust construction extends service life, reducing maintenance costs.
- Smart Automation – Electric eye sensors ensure smooth, fast, and safe operation of the entire production line.
Product Development Centres
The beverage market is constantly seeking new products that cater to evolving tastes and demands. Whether it’s developing new flavors or reducing environmental impact, our Product Development Centres are here to help you create your next innovative solution.
Main Technical Parameters
| Model | BRCGF14-12-5 | BRCGF16-16-5 | BRCGF18-18-6 | BRCGF24-24-8 | BRCGF32-32-8 | BRCGF40-40-10 |
| Product Capacity(bottle/hour) | 3000-3500 | 5000-6000 | 6000-7000 | 8000-10000 | 12000-15000 | 15000-17000 |
| Suitable Bottle shape | PET Square or Round | |||||
| Bottle Diameter (mm) | φ50-φ100 | |||||
| Bottle Height (mm) | 50-320 | |||||
| Compressed Air Pressure (MPa) | 0.3-0.7 | |||||
| Washing Medium | Sterile Water | |||||
| Washing Water PPressure (MPa) | 0.06-0.2 | |||||
| Total Power (kW) | 3.1 | 3.1 | 3.8 | 5.6 | 5.6 | 7.2 |
| Overall Dimensions (mm) | 2400*1680*2400 | 2400*1850*2400 | 3100*2200*2400 | 3600*2500*2400 | 3750*2600*2400 | 4000*2800*2400 |
| Weight (kg) | 2500 | 3500 | 4000 | 5000 | 6000 | 7000 |
