Bottle Labeling Machine Solution
It’s never been more important to stand out from the crowd in today’s competitive Bottle Labeling Machine.
As your products’ main communicator to consumers, labels are more than an identifier – they allow you to differentiate
your products and give consumers the information they need and increasingly expect.

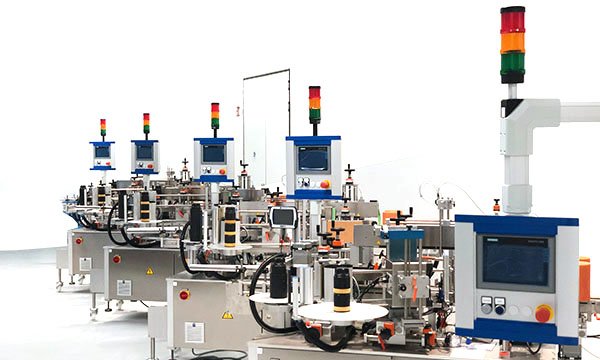

Bottle Labeling Machine
When it comes to labeling a variety of beverage types and bottle formats, more than ever before, flexibility has become a valuable benefit to beverage producers. The top priorities today are faster product and format changeovers, simple operations and optimised processes that use the same line for different label types.Easy to use and flexible, they also incorporate a range of technologies suitable for many types of containers and products: from beverages to cosmetics to detergents.
What Components Make Up A Labeling System?
- Fully equipped for all conceivable labeling tasks, including a selection of different printing and monitoring systems and various options, our labeling solutions are suitable for a broad range of labeling industries and labeling applications.
- Today’s bottle labeling machine must deliver precision, speed and versatility – for example, in terms of the print module used: in single, double or multi-sided side, top and bottom labeling or (possibly in combination with) wrap-around labeling. We offer labeling solutions for fully automated in-line manufacturing as well as semi-automatic systems.
- We have a suitable labeling system for every labeling application, no matter how demanding. Innovative rotary discs, electronic digital displays, format sets that can be changed without tools for rapid format adjustments, as well as operation of the entire machine ensure that the overall system is as effective as possible.
View Our Bottle Labeling Machine Solutions
Check out our selection of automatic bottle labeling machines to find the perfect solution for your facility. If you’d like additional information and/or a quote, contact us today! Our product experts will help you find the right labeling equipment for your needs.
Two-side labeler
Wrap-around labeler
Top & bottom labeler
Special labeling systems
Which Labelling Solution Is Right For You?
① Water Bottles
– Wrap around PVC or PET labels
– 3000-36000 bph
– Self-adhesive plastic
– 1,000 – 24,000 bph
– High shrinkage plastic labels
– Up to 24,000 bph
② Csd Bottles
– Wrap around PVC or PET labels
– 3000-36000 bph
– High shrinkage plastic labels
– Up to 24,000 bph
③ Juice Bottles
– Wrap around PVC or PET labels
– 3000-36000 bph
– High shrinkage plastic labels
– Up to 24,000 bph
④ Ldp Bottles
– Wrap around PVC or PET labels
– 3000-36000 bph
– High shrinkage plastic labels
– Up to 24,000 bph
⑤ Glass Bottles
– Self-adhesive plastic or paper labels
– 1,000 – 24,000 bph
– Partial pre-cut paper labels
– 1,000 – 20,000 bph
– Partial pre-cut aluminium foil
– 1,000 – 20,000 bph
⑥ Hpc Bottles
– Self-adhesive plastic or paper labels
– 1,000 – 24,000 bph
– Partial pre-cut paper labels
– 1,000 – 20,000 bph
– Partial pre-cut aluminium foil
– 1,000 – 20,000 bph
Fully Automated Servo Driven Labeler
Details of Automated Servo Driven Labeler
Digital Set Points
Digital set points with electronic feedback tied into the setup screen. All mechanical adjustments have indicators with LED lighting which turns green when the operator is at the correct setpoint and red when they are not. On the HMI and the Siko indicators, arrows point to the direction in which the adjustment needs to be made.
Fully Guided
Fully guided step-by-step setup by the HMI: In the setup screen, the setup of a new format is divided by assembly, and a short animation or video per assembly would play to show the operator how to do the setup correctly.
Setup Spot Light
Setup Spot Light is another excellent feature notifying the operator when there is an issue with the assembly. The light strip is installed along the length of the machine. When setup is required on a particular assembly, the section of the LED strip in front of that assembly will light up to draw the operator’s attention.
Servo Drives Setup
- Servo Drives setup and recipe creation; you need to enter the dimensions of the bottle and the label into HMI
| Technical data | |
| Labeling type: | Two-side labeling • wrap-around labeling (optional) |
| Product specifications: | Rectangular, flat-arched to oval, cylindrical, free-standing |
| Product dimensions: | Two-side labeling: 25 – 110 x 25 – 80 x 50 – 320 mm (L x W x H) / Wrap-around labeling: 25 – 80 x 50 – 250 mm (D x H) |
| Label dimensions: | Two-side labeling: 15 – 240 x 30 – 200 mm (W x L) / Wrap-around labeling: 15 – 240 x 30 – 315 mm (W x L) |
| Capacity: | Up to 500 products/minute |
| Power supply: | 400 V, TN-C-S, 50 Hz, 3 phases, 208 V, Delta 4-wire, 60 Hz, 3 phases (optional) |
| Compressed air supply: | 6 bar |
| Printer: | Various hot-foil and thermal transfer printers (optional) |
| Components: | Control panel with 12 inch touchscreen, conveyor belt, side guides for products, top belt, applicators, wipe-down station |
| Options: | Transfer plates at infeed and outfeed, belt-type separator, scroll-type separator, chain aligner, wrap-around labeling with wrap-around belt and counterpressure plate or vertical moving roller prism, movable version, electronic position indicators, motorized height adjustment, pre-centering station, centering station, print check, bad label return, label presence check, product reject station, transparent safety guard, remote service via internet |
| Note: | If optional features are chosen, the above data may vary |
