Description

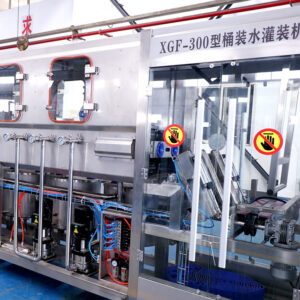

Efficient 5 Gallon Big Bottle Barrel Capper Bottle Washing Filling Capping Machine
Product Description
We supply complete solution for the 5 gallon bucket filling machine ,including Water treatment system / Decapping machine /Inside brusher / Externer brusher / Automatic 5 Gallon rinsing filling capping machine / Automatic Cap sleeve label machine / Code printer / Film wrapping machine / Automatic 5 gallon palletizer system.
| Technical parameter : 5 gallon bucket filling machine | ||||||
| Model | QGF-150 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
| Capacity(for 5 gallon) | 60-150bph | 300bph | 450bph | 600bph | 900bph | 1200bph |
| Suitable bottle shapes | circular or square | |||||
| Bottle volume | 3 & 5 Gallon | |||||
| Air consumption | 0.37 m3/min | |||||
| Compressor air | 0.3-0.7Mpa | |||||
| Rinsing pressure | >0.06Mpa <0.2Mpa | |||||
| Application | 5gallon water production plant | |||||
| Total power (KW) | 1.5kw | 3.8kw | 4.5kw | 5.2kw | 6.2kw | 7.8kw |
| Overall dimensions | 2.3*1.9m | 2.5*1.9m | 2.8*2.15m | 3.1*2.5m | 3.8*2.8m | 4.5*3.3m |
| Height | 1.8m | 2m | 2.2m | 2.3m | 2.5m | 2.6m |
| Weight(kg) | 800kg | 1500kg | 2000kg | 2500kg | 2800kg | 3500kg |
Description:
The filling line specially for 3-5 gallons barreled drinking water ,with type QGF-100,QGF-240,QGF-300,QGF450,QGF-600,QGF-900,QGF-1200.It integrateds bottle washing,filling and capping into one unit,in order to achieve the purpose of washing and sterilizing,The washing machine uses multi-washing liquid spray and thimerosal spray,the thimerosal can be used circularly,the capping machine can be cap barrel automatically ,he line equips with water spraying device in order to ensure those caps sterile and clean ,it also can automatically carry out barrel,washing,steriizing,filling,capping,counting and products discharging,with complete function,modern design and high degree of automation ,It is a new kind of barreled water auto producing line ,which integrates mechanism,electricity and pneumatics technologies together
Main Features
This production line is an automatic barrel production line for drinking water of 3-5gallon. Meanwhile, it is also suitable to produce barrel wine, vinegar, medicine and so on. This production line is adopted sufficiently tech-knowledge from overseas’ drinking water equipment and plus our elaborately design due to our nation tradition to work out. So it has full functions, low energy consumption, low investment, and higher and fast effecting characteristic. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.QGF-900 is an automatic barrel production line for drinking water of 3-5gallon. Meanwhile, it is also suitable to produce barrel wine, vinegar, medicine and so on. This production line is adopted sufficiently tech-knowledge from overseas’ drinking water equipment and plus our elaborately design due to our nation tradition to work out. So it has full functions, low energy consumption, low investment, and higher and fast effecting characteristic. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.
