Description
RCGF8-8-4 2500BPH 300-1000ml Hot Filling Bottle Juice Filling Machines
Product Description
Automatic Bottle Juice Filling Machines
1. Model RCGF8-8-4
2. Capacity: 2500BPH (500ml)
3. Applicable: plastic bottle 300ml-1000ml
4. Machine electric brand: Siemens, Mitsubishi, Schneider
5. The Machine power:3kw
7. Machine weight: 2000kg
7. The Machine includes functions: filling, sealing.
8. Application: juice,pulp juice
| 型号 Model | RCGF8-8-4 |
| 生产能力（瓶/小时） Production capacity(bottle/hour) | 2000-2500 |
| 适合的瓶子形状 Suitable bottle shape | PET瓶子方形或圆形 PET bottle square or round |
| 瓶子直径（毫米） Bottle diameter（mm） | φ50-φ100 |
| 瓶高（毫米） Bottle height（mm） | 50-320 |
| 压缩空气压力（兆帕） Compressed air pressure(Mpa) | 0.3-0.7 |
| 洗涤介质 Washing medium | 无菌水 Purified water |
| 洗涤水压力（兆帕） Washing water pressure(MPa) | 0.06-0.2 |
| 总功率（千瓦） Total power(KW) | 3 |
| 外形尺寸（毫米） Overall dimensions(mm) | 2000*1500*2200 |
| 重量（公斤） Weight(kg) | 2000 |

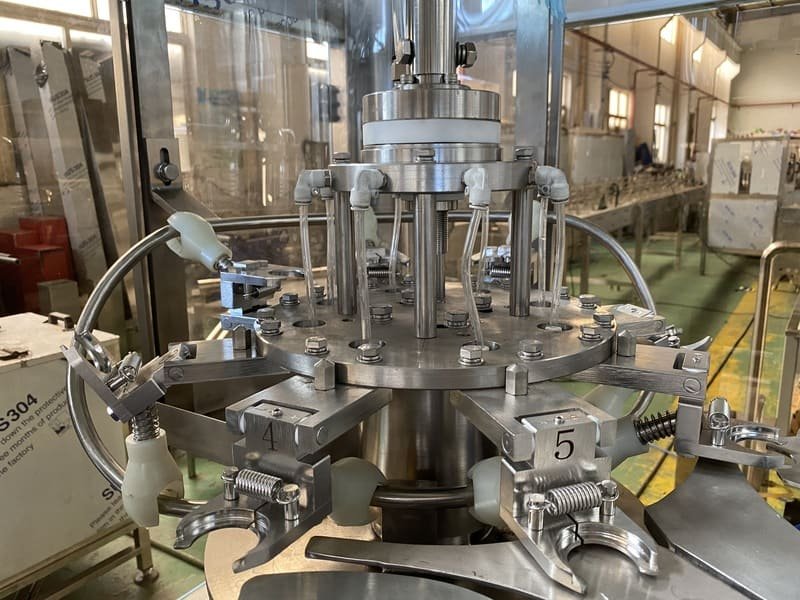

Bottle Rinsing
High-Speed Juice Bottle Rinsing –Efficient & Automatic
✔ Removes dust & microbes with high-pressure air/water jets.
✔ 304 stainless steel, rotary/full immersion cleaning.
✔ Compatible with PET/glass, 2000–15,000 BPH.
✔ CIP-ready, low water consumption.

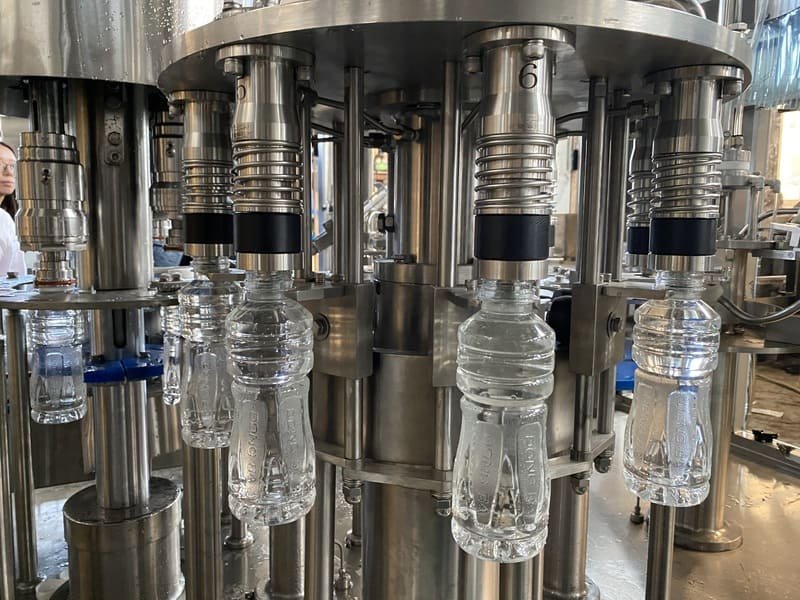

Juice Filling Machine
Precision Bottle Juice Filling Machines – No Drips, No Contamination!
✔ Aseptic filling (85°C for hot fill, ambient for cold).
✔ Adjustable volumes (100ml–2L), 98% accuracy.
✔ PLC-controlled, servo-driven, FDA-approved.
✔ Handles NFC, concentrates & pulpy juices.
Boost efficiency with <1% waste! Get a quote.

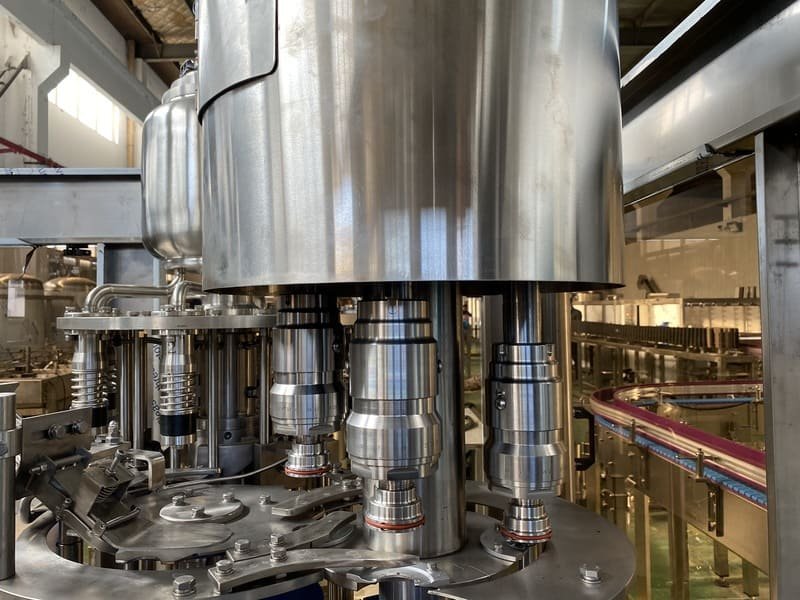

Bottle Capping
Automatic Juice Bottle Capping – Tamper-Proof & Leak-Free
✔ Works with screw caps, snap lids & aluminum seals.
✔ Torque control (5–25 Nm), 100% seal integrity.
✔ 304 stainless steel, 2000–12,000 CPH.
✔ No jams, easy size changeover.
Ensure freshness & compliance!
