Description

Mineral Water Production Line Automatic Pure Water Bottling Machine

plastic bottle filling machine

Product Description

Automatic sokos water filling machines, pure water filling machine， bottled water filling machine
1. Model CGF18-18-6
2. Capacity: 12000BPH (500ml)
3. Applicable: plastic bottle 300ml-1000ml
4. Machine electric brand: Siemens, Mitsubishi, Schneider
5. Machine power: 5.5kw
7. The Machine weight: 2800kg
7. Machine includes functions: filling, sealing.
8. Application: beverage, water, juice, oil.

ModelCGF 14-12-5CGF 18-18-6CGF 24-24-8CGF 32-32-10
Capacity4000-5000BPH6500-12000BPH10000-12000BPH12000-15000BPH
BottleΦ = 50-110 H = 170体积 = 330-2250ml
Can diameter50-70mm
Washing pressure (kg/cm2)2 ~ 3
Machine power2.2KW3KW3.8KW5.5KW
Machine size240 × 165 × 250cm240 × 183 × 240cm310 × 220 × 240cm380 × 280 × 290cm
water filling line
Sokos Water Filling Machines

Automatic Pure Water Bottling Machine -Mineral Water Filling Line with Advanced Bottle Washing System

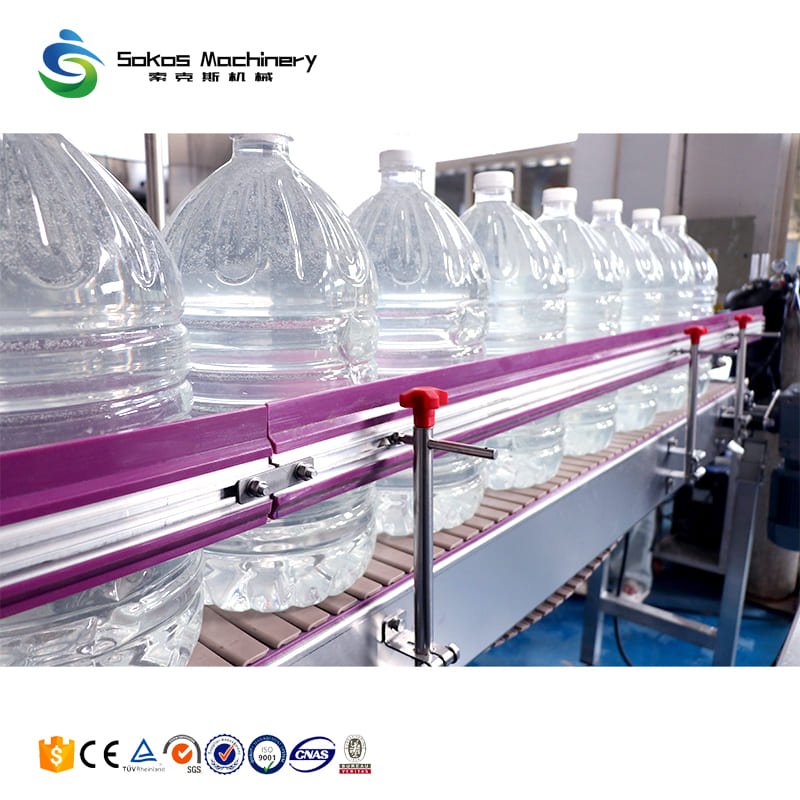

  • Sokos Water Filling Machines ever dealt with bottles jamming or slowing down your line? Our system starts with an air conveyor that connects directly to the bottle dial, creating a steady, uninterrupted flow. No more bottlenecks—bottles glide from the conveyor to the washing station without stopping, keeping your production on track.
  • Once they reach the washing area, our stainless steel flushing heads take over. Designed with a smart water spray pattern, they blast away dust and debris while using less water than traditional systems. And to protect your bottles? We added plastic pads to the stainless steel grippers that hold the bottles during washing. This means minimal collisions, so even thin plastic bottles stay scratch-free and intact.
  • Plus, the cleaning pump is built from tough stainless steel, so it handles high-demand days without wearing out. No more unexpected breakdowns slowing down your shift.

Mineral Water Filling Line with Precision Filling and Cleaning Features

  • Consistency is key in water bottling—customers expect the same fill level in every bottle. The Sokos Water Filling Machines’s high-precision nozzles deliver just that. You can adjust the filling volume easily, and once set, the nozzles hit the mark every time, leaving consistent liquid levels across your entire production run.
  • We also paid close attention to the parts that touch the water. All contact surfaces and liquid tanks are made from high-quality materials, polished smooth to eliminate tiny crevices where bacteria could hide. This makes cleaning a breeze—no more scrubbing hard-to-reach spots, which cuts down on downtime between batches.
  • The stainless steel filling pump keeps things running smoothly, even during long production runs. It’s built to last, so you won’t be replacing parts constantly.
Sokos Water Filling Machines
Sokos Water Filling Machines

Automatic Bottling Filling Machine - Mineral Water Filling Line with Precision Capping System

A loose cap can ruin a bottle of water—either by leaking or letting in contaminants. Our capping system uses an electromagnetic head with a pressure relief function, which gently but firmly seals each bottle. The result? A consistent, tight cap every time, with a defect rate of 0.15% or less.
We also added smart features to cut down on waste:
  • “No bottle, no cap” technology: If a bottle is missing, the machine won’t drop a cap, so you don’t waste lids.
  • Automatic stop: If a bottle gets stuck or goes missing, the line pauses briefly to fix the issue, preventing caps from being wasted or bottles from being uncapped.
These small touches add up, saving you money on supplies and reducing downtime.

Why Choose Us

  • Direct Manufacturer: With over 10 years of experience in developing and manufacturing beverage and liquid food filling machines. Our plant spans 4000m², and we have independent property rights.

  • Professional Export Team: We offer stable product quality, fast delivery, and clear communication, ensuring smooth international transactions.

  • Custom Manufacturing: Our skilled technical team can design machines in various sizes and configurations to meet your unique specifications.

  • Strict Quality Control: We never ship equipment without customer approval. Every machine undergoes 24-hour testing before shipping, and we ensure quality is controlled at every production stage.

  • 12-Month Warranty: All our equipment comes with a 12-month warranty, and we provide lifetime technical support for all products.

  • Fast Spare Parts Availability: We supply spare parts quickly and at cost price, minimizing downtime and ensuring operational continuity.
