Description

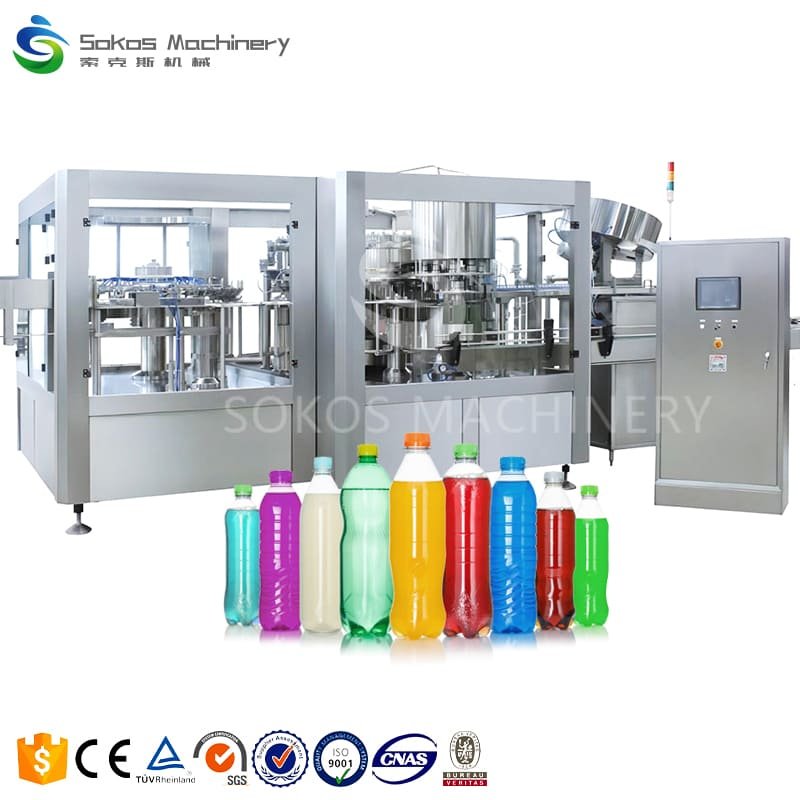

DCGF24-24-8 9000BPH High Speed Carbonated Beverage Isobaric Filling Machine
Products Features
DCGF24-24-8 Filling Machine
DCGF24-24-8 Filling Machine（High Speed）

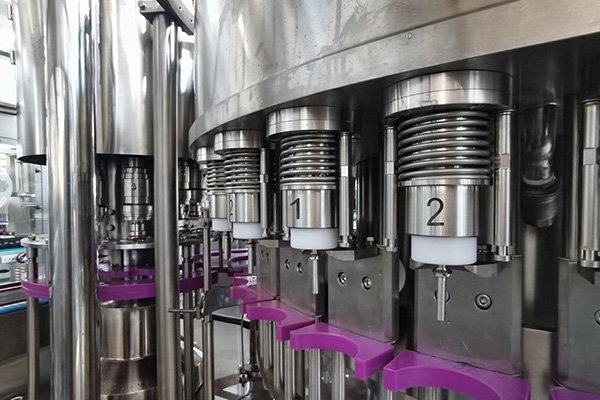

1. Structural Design & Working Principle
| Comparison | Conventional Rotary Valve | High-Speed Isobaric Filling Machine |
|---|---|---|
| Valve Structure | Mechanical spring valve, gravity-fed | Electromagnetic/pneumatic servo-controlled, pressure-fed |
| Drive Mechanism | Mechanical linkage, fixed speed | Independent servo motor, programmable speed |
| Contact Method | Requires bottle mouth insertion (prone to wear) | Non-contact/suspended filling (reduces contamination risk) |
Industry Pain Point Solved:
High-speed valves eliminate material abrasion (common in PET bottle production) through non-contact design.
2. Performance Comparison
| Parameter | Conventional Valve | High-Speed Valve |
|---|---|---|
| Filling Speed | 8000BPH bottle/hour | 9000BPH bottle/hour |
| Accuracy | ±1.5% | ±0.5% |
| Viscosity Range | Low-viscosity liquids only | Handles high-viscosity liquids |

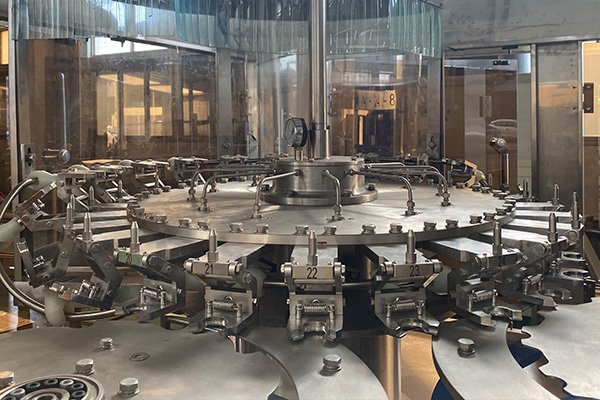

Bottle Washing System
The 24-head rinsing unit ensures thorough internal and external cleaning of bottles before filling. Utilizing high-pressure sterile water or air jets, it removes contaminants, dust, and residual particles to meet hygiene standards. The rotary design guarantees continuous operation, synchronized with the filling process for maximum efficiency. Advanced sensors detect bottle presence, ensuring precise rinsing without water waste.

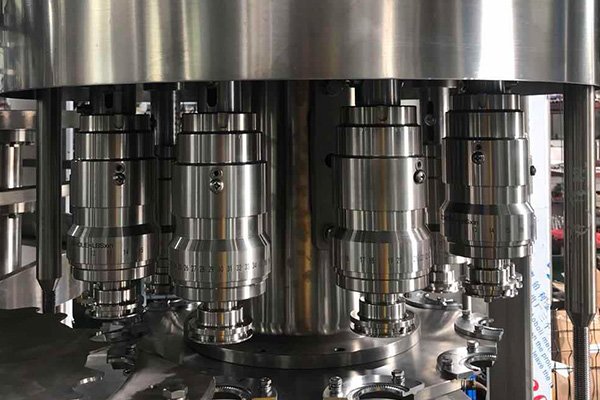

Bottle Capping System
The 8-head rotary capping system delivers high-speed, consistent cap application with adjustable torque control. Suitable for various cap types (e.g., screw caps, snap-on lids), it ensures airtight sealing while preventing over-tightening or damage. The rotary motion aligns with the production line’s speed. Automatic cap sorting and feeding further enhance efficiency.
Why Choose Us
Direct Manufacturer: With over 10 years of experience in developing and manufacturing beverage and liquid food filling machines. Our plant spans 4000m², and we have independent property rights.
Professional Export Team: We offer stable product quality, fast delivery, and clear communication, ensuring smooth international transactions.
Custom Manufacturing: Our skilled technical team can design machines in various sizes and configurations to meet your unique specifications.
Strict Quality Control: We never ship equipment without customer approval. Every machine undergoes 24-hour testing before shipping, and we ensure quality is controlled at every production stage.
12-Month Warranty: All our equipment comes with a 12-month warranty, and we provide lifetime technical support for all products.
Fast Spare Parts Availability: We supply spare parts quickly and at cost price, minimizing downtime and ensuring operational continuity.
