Description

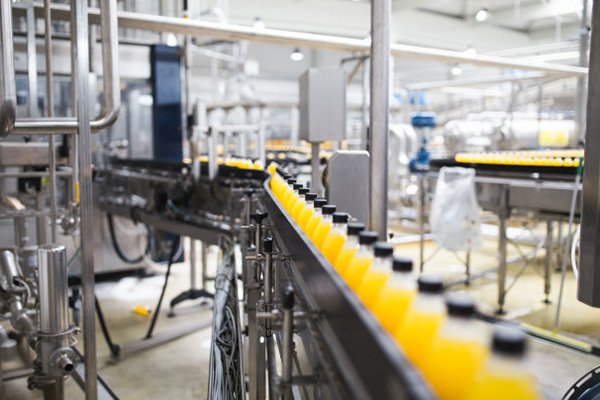

DCGF60-60-15 24000BPH Automatic Carbonated Soft Drinks Energy Drinks Soda Filling Production Line
DCGF60-60-15 Filling Machine
High Speed DCGF60-60-15 Filling Machine
| Feature | Standard Isobaric Filler | High-Speed Valve soda filling production line |
|---|---|---|
| Valve Type | Standard pneumatic valves | Precision high-speed servo valves |
| Max Filling Speed | 20,000 BPH (500ml) | 24,000 BPH (500ml) |
| CO₂ Retention | ±0.15 vol | ±0.08 vol |
| Foam Control | Mechanical adjustment | Dynamic real-time foam suppression |
| Changeover Time | 15-20 minutes | 5-8 minutes |
| Accuracy (500ml) | ±5ml | ±2ml |
| Energy Consumption | Standard | 15-20% lower |
| CIP Compatibility | Standard | Enhanced spray coverage |

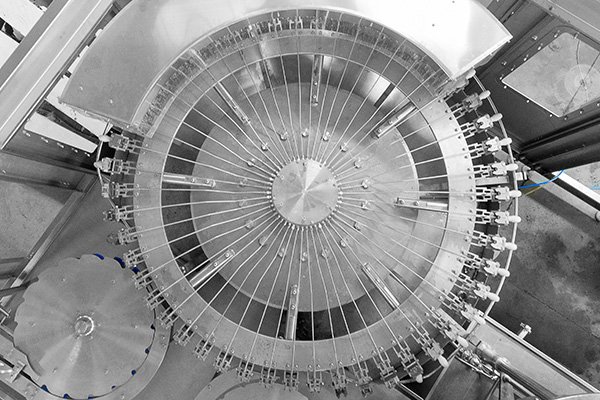

Rinsing System (60 Heads)
60-station rotary rinsing with dual-pressure (3/6 bar) nozzles
Laser-guided bottle inspection automatically rejects cracked/contaminated bottles
Three-stage filtration: Sand filter → Activated carbon → 0.2μm sterile membrane
Performance:
✔ 600 bottles/min (500ml PET/glass)
✔ Residual water <0.1ml
✔ CIP/SIP compatible

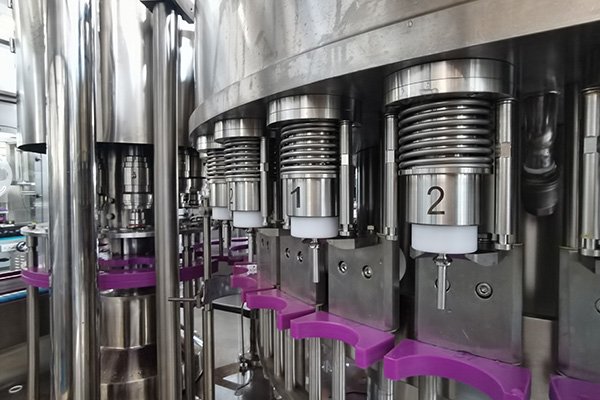

Filling System (60 Heads)
Core Innovation:
Servo-controlled filling valves
Dynamic pressure compensation for zero foam
Mass flow meter dosing
Carbonation Control:
♻ CO₂ loss <0.1 vol
🌡 Temp-stabilized filling
📊 Touchscreen recipe management

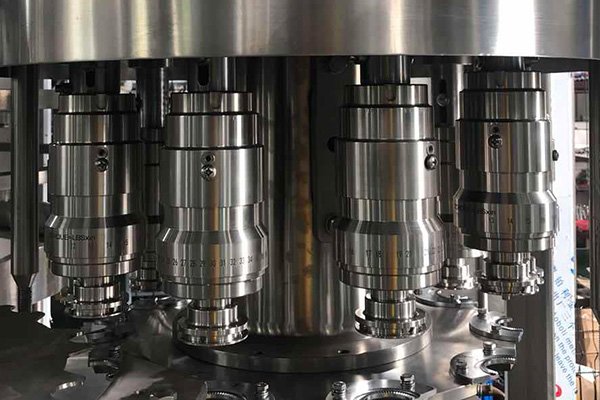

Capping System (15 Heads)
Precision Components:
Magnetic torque control
Vision-guided cap alignment
Anti-counterfeit cap detection
Output Quality:
🔒 Leakage rate <0.01%
🔄 Cap orientation accuracy >99.9%
🔧 Self-lubricating capping heads
Why Choose Us
Direct Manufacturer: With over 10 years of experience in developing and manufacturing beverage and liquid food filling machines. Our plant spans 4000m², and we have independent property rights.
Professional Export Team: We offer stable product quality, fast delivery, and clear communication, ensuring smooth international transactions.
Custom Manufacturing: Our skilled technical team can design machines in various sizes and configurations to meet your unique specifications.
Strict Quality Control: We never ship equipment without customer approval. Every machine undergoes 24-hour testing before shipping, and we ensure quality is controlled at every production stage.
12-Month Warranty: All our equipment comes with a 12-month warranty, and we provide lifetime technical support for all products.
Fast Spare Parts Availability: We supply spare parts quickly and at cost price, minimizing downtime and ensuring operational continuity.
