Description

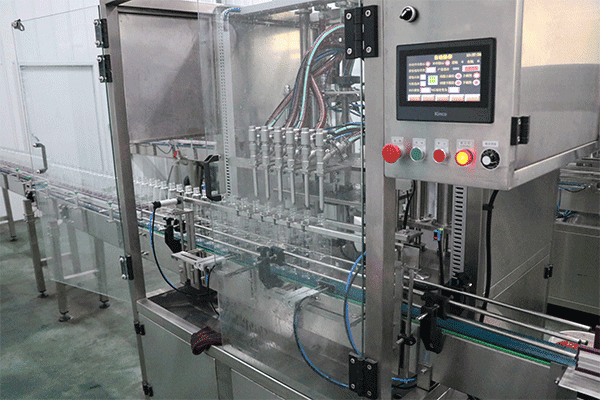

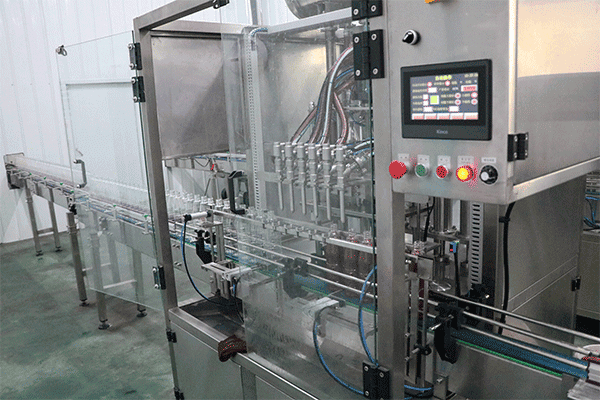

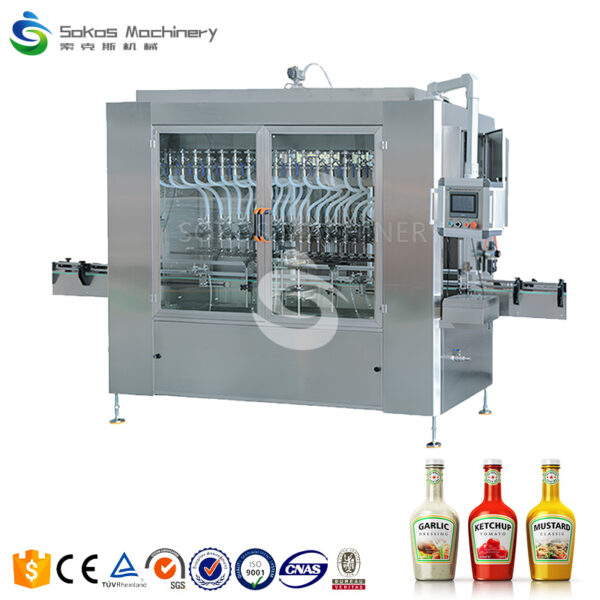

GF6-1 3000BPH Tomato Sauce Linear Filling Machine
Product Description
| Model | GF6-1 | GF8-1 | GF16-1 |
| Capacity (BPH) | 1000-3000 | 3000-4000 | 4000-8000 |
| Filling Volume (ml) | 100-1000 | 1000-2500 | 250-5000 |
| Filling Accuracy (%) | 99.50% | 99% | 99% |
| Suitable samples | Plastic and Glass bottle | Plastic and Glass bottle | Plastic and Glass bottle |
| Filling Nozzles | 6 | 1900/1/8 | 16 |
| Materials | SUS304/316L | SUS304/316L | SUS304/316L |
| Operation Language | English and customized | English and customized | English and customized |
| Running hours & work life | 24 hours and 12 years | 24 hours and 12 years | 24 hours and 12 years |
| Power (kW) | 2.5 | 3 | 5 |
| Compressed Air (m3/min) | 0.6 | 0.8 | 1 |
| Vibration (mm) | 0.85 | 0.85 | 0.85 |
| Noise (dB) | 65-75 | 65-75 | 65-75 |
| Dimensions (L*W*H, mm) | 1500*1200*2000 | 1700*1200*2000 | 2000*1200*2000 |
| Weight (KG) | 850 | 950 | 1100 |

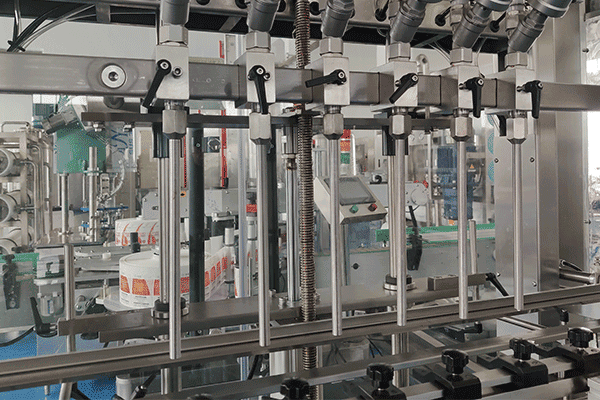

Filling Nozzle
Drip-Free Design: Tapered nozzle with spring-loaded suction mechanism to retract residual sauce after filling, preventing drips and contamination.
Food-Grade Materials: Nozzle contact parts made of 316 stainless steel or PTFE, ensuring corrosion resistance and easy cleaning (compliant with FDA/CE standards).
Adjustable Bore: Tomato sauce filling machine Interchangeable nozzle tips (3–8 mm) accommodate varying tomato sauce viscosities (e.g., concentrated or chunky sauces).
Filling Pipeline
Independent Multi-Channel Control: Each of the 6 filling heads tomato sauce filling machine has a dedicated channel with PLC-adjustable parameters to compensate for viscosity differences.
Quick-Disassembly: Mirror-polished inner walls with clamp connectors enable thorough cleaning to prevent bacterial growth.

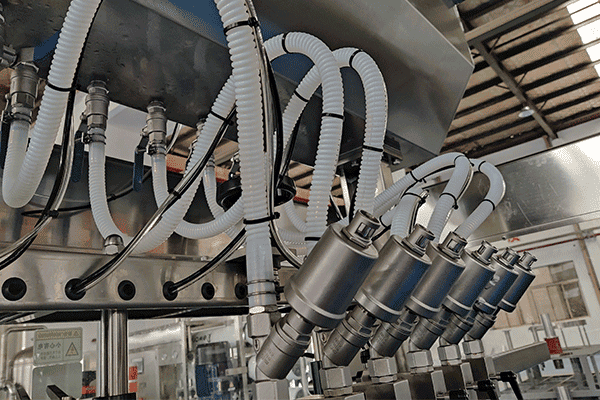

Piston Cylinder
Servo-Driven Precision: Servo motor + ball screw piston system achieves ±0.5% filling accuracy (superior to pneumatic systems), ideal for viscous tomato sauce.
Abrasion-Resistant Seals: Polyurethane or ceramic piston seals resist acidic corrosion and particulate wear (>500,000 cycles).
Dual-Cylinder System (Optional): Large storage cylinder paired with a metering cylinder enables continuous filling without downtime.
PLC Control Panel
User-Friendly HMI: 7-inch touchscreen with pre-set tomato sauce profiles (e.g., fill volume: 50–500 mL, piston speed, suction delay) and 10 recipe memories.
Auto-Compensation: Real-time monitoring adjusts for air bubbles or viscosity changes to ensure consistent fill volumes.
Fault Diagnostics: Alerts for nozzle clogs, low sauce levels, or cylinder pressure anomalies.
Why Choose Us
Direct Manufacturer: With over 10 years of experience in developing and manufacturing beverage and liquid food filling machines. Our plant spans 4000m², and we have independent property rights.
Professional Export Team: We offer stable product quality, fast delivery, and clear communication, ensuring smooth international transactions.
Custom Manufacturing: Our skilled technical team can design machines in various sizes and configurations to meet your unique specifications.
Strict Quality Control: We never ship equipment without customer approval. Every machine undergoes 24-hour testing before shipping, and we ensure quality is controlled at every production stage.
12-Month Warranty: All our equipment comes with a 12-month warranty, and we provide lifetime technical support for all products.
Fast Spare Parts Availability: We supply spare parts quickly and at cost price, minimizing downtime and ensuring operational continuity.
