Description
Sokos Juice Filling Line
The Sokos juice filling production line is suitable for filling and sealing various liquid products such as juices, fruit-flavored beverages, fruit pulp drinks, concentrated juices, and tea beverages. The entire line includes water treatment, sterilization, blending, filling, capping, labeling, and packaging—supporting both hot fill and ambient temperature processes. It is compatible with multiple bottle types including PET bottles, glass bottles, and tin cans.
Sokos offers factory-direct solutions with competitive juice filling machine price, ensuring high efficiency and excellent performance for your production needs.
Application scope
- Pure fruit juice (orange juice, apple juice, grape juice, etc.)
- Fruit pulp beverages, fruit and vegetable juices
- Mixed fruit juices, fruit juice beverages
- Concentrated fruit juices, tea beverages, functional beverages
Configuration and Features
| Module | Description |
| Automatic Bottle Unscrambler | Efficient bottle feeding into the filling line without jamming |

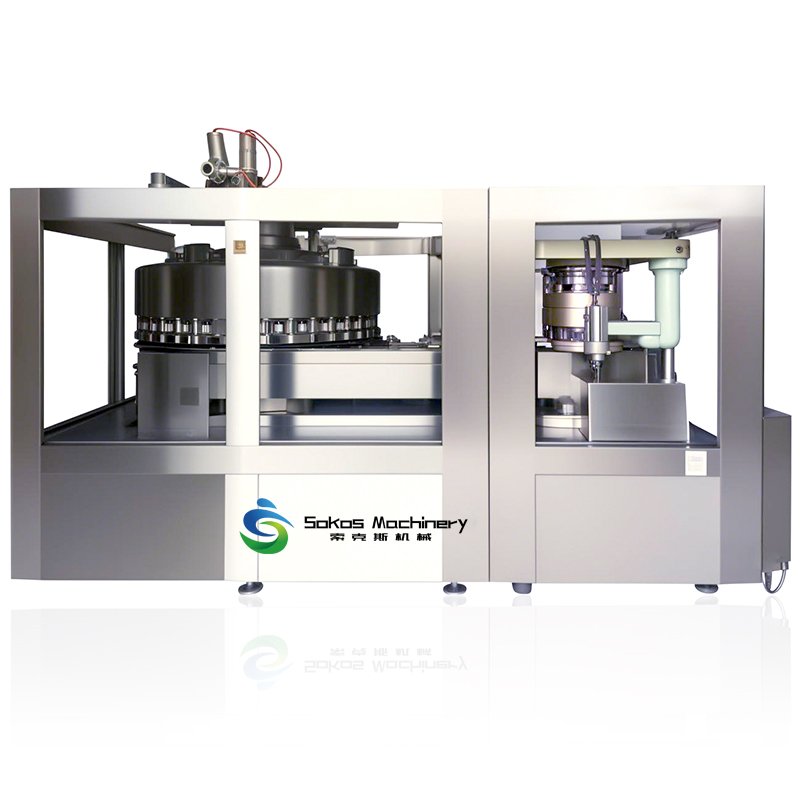

| 3-in-1 Filling Monoblock | Integrated rinsing, filling, and capping to save space |
| Hot Filling System | Accurate temperature control, suitable for 95°C hot filling |
| CIP Cleaning System | Automated cleaning of pipelines and filling valves for food safety |
| Filling Valve Technology | Anti-drip design ensures high fill level and stable performance |
| Control System | Siemens PLC and touch screen for fully automatic operation |
Sokos – Your Trusted Filling Partner
💡 Customization Support: We can tailor complete production line solutions based on different bottle types, production volumes, and process requirements.
🏭 Factory Direct Sales: With our own manufacturing facilities, we ensure cost control and reliable delivery schedules.
🔧 Installation and commissioning: We offer on-site installation, remote guidance, and operator training.
🌍 Extensive export experience: We serve over 100 countries worldwide and hold complete CE/ISO certifications.
🧰 Worry-free after-sales service: We provide full machine warranty and a rapid response service team.
Matching Capacity
📌 Note: All models support hot filling (up to 95°C) and are compatible with PET or glass bottles. Custom configurations available based on product and bottle size.
| Model | Capacity | Suitable For |
| RCGF8-8-4 | 2,000–3,000 BPH | Small scale production |
| RCGF14-12-5 | 3000-3500 BPH | Entry-level commercial use |
| RCGF16-16-5 | 5000-6000 BPH | Mid-size beverage factories |
| RCGF18-18-6 | 6000-7000 BPH | Growing production lines |
| RCGF24-24-8 | 8000-10000 BPH | Standard medium-scale bottling |
| RCGF32-32-8 | 12000-15000 BPH | High-efficiency operations |
| RCGF32-32-10 | 12000-15000 BPH | High-volume with flexibility |
| RCGF40-40-10 | 15000-17000 BPH | Large-scale filling operations |
| RCGF50-50-15 | 18000-20000 BPH | Mass production |
| RCGF60-60-20 | 20000-24000 BPH | Ultra-high-speed lines |
Customer Success Stories
Essex | Fruit Juice Filling Line
In January 2025, we launched a complete fruit juice filling line in Essex, with a capacity of 14,000 bottles per hour. Designed for both hot and cold filling, this compact solution covers the entire process — from concept to commissioning.
Indonesia | PET Bottle Pure Water Complete Line
In 2024, we commissioned a complete PET bottle pure water production line in Indonesia, covering 200ml, 400ml, 500ml, and 1000ml bottle sizes. This upgrade boosted production capacity and enhanced product variety for the local market.
Cambodia | Glass Bottle Beer Filling Line
In 2024, we launched another complete glass bottle beer filling line — from bottle washing to capping and packaging — with an average output of 12,000 bottles per hour, covering four different bottle volumes.
Washing Section
The washing section ensures each bottle is thoroughly rinsed before filling, creating a clean and hygienic environment for juice production. Sokos equips this section with a rotary rinser system featuring stainless steel nozzles and gripping clamps, allowing precise and efficient internal cleaning.
High-pressure jets remove dust, particles, and contaminants using clean water or sterilizing solutions. The fully synchronized design automatically transfers bottles to the filling section, improving safety and speed. This advanced washing system contributes to overall line efficiency—making our juice filling machine price highly competitive in terms of performance and value.

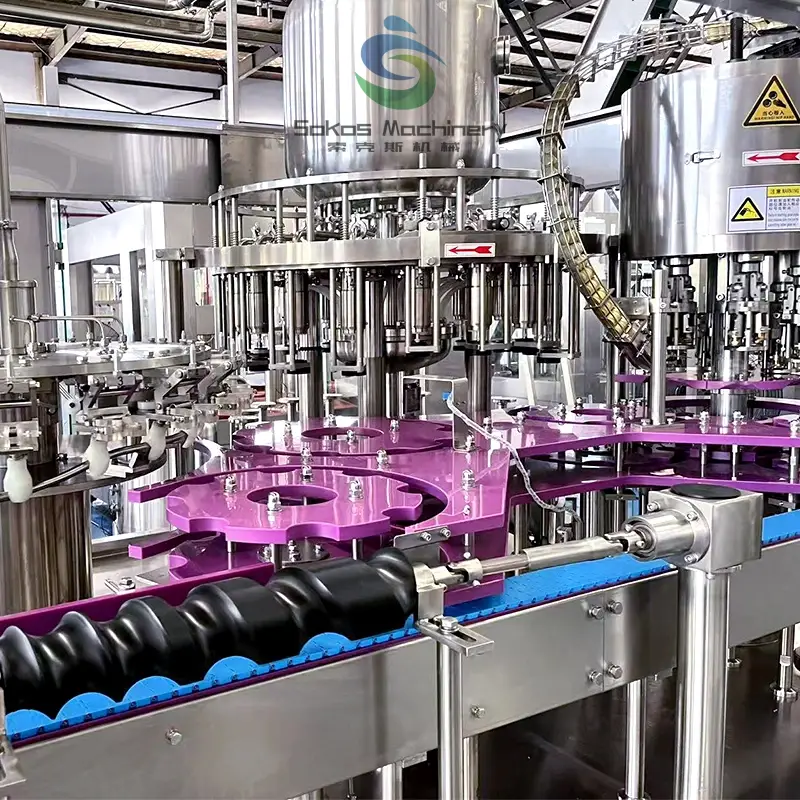

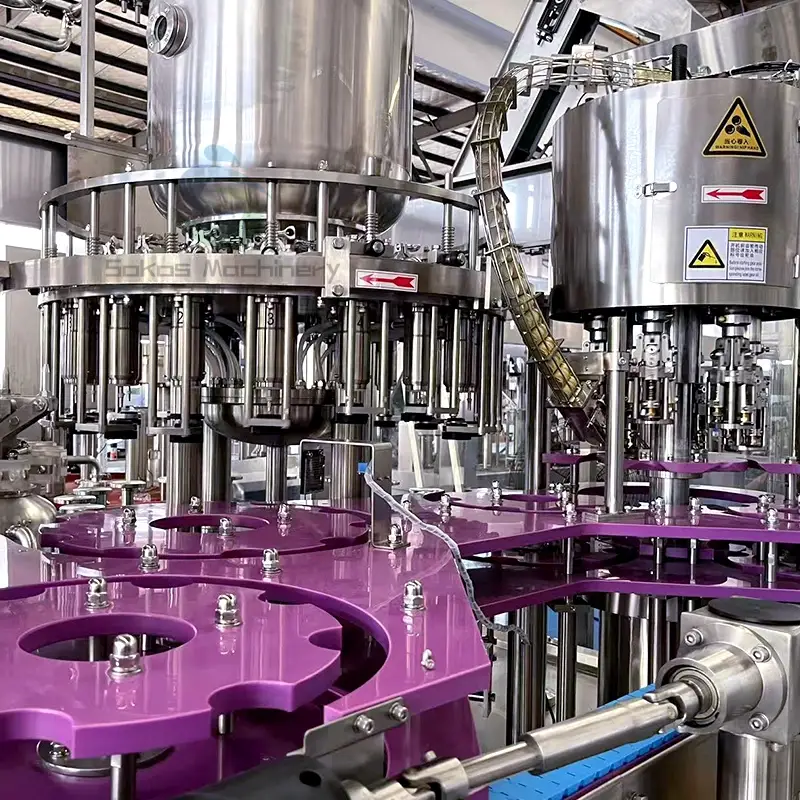

Filling Section
The filling section is the core of the juice bottling line, designed for accurate and hygienic liquid dispensing. Sokos adopts advanced flow meter or volumetric filling technology, ensuring high precision and consistent fill levels across every bottle.
Our filling valves are equipped with anti-drip and anti-foam design, making them ideal for both hot filling (up to 95°C) and ambient filling of fruit juices, pulp drinks, and concentrates. The system is fully automated and synchronized with the rinsing and capping sections to ensure smooth, high-speed operation.

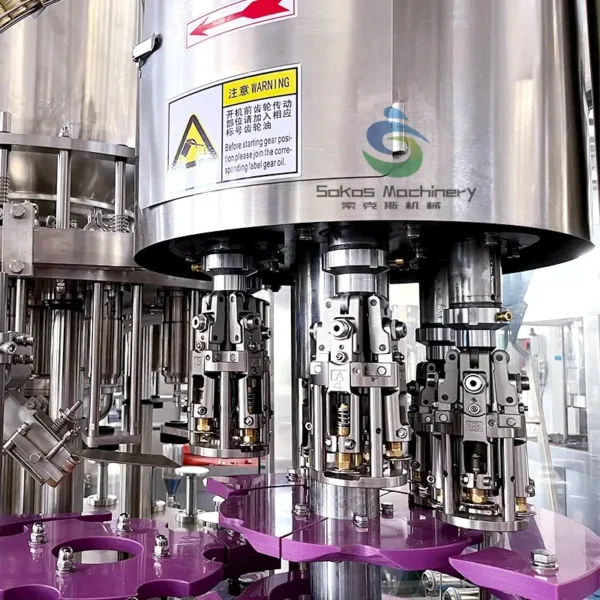

Capping Section
The capping section delivers secure and precise sealing for every bottle, helping preserve freshness and prevent leakage. Sokos engineers our high-speed capping system to operate fully automatically and stay synchronized with the filling process, ensuring efficient and consistent production.
Our advanced capping heads apply accurate torque and detect missing caps to minimize errors and maintain product quality. Whether you use plastic screw caps, aluminum caps, or press-on lids, we customize the capping system to match your packaging needs. This precision and flexibility make our juice filling machine price an excellent investment for manufacturers seeking long-term value and performance.
