Description
RCGF32-32-10 15000BPH 300-1000ML Juice Filling Production Line
Product Description

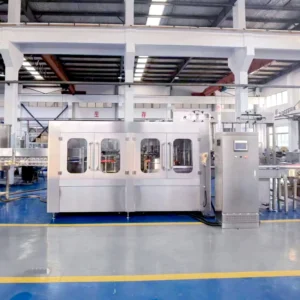

Automatic Juice Production Line
1. Model RCGF32-32-10
2. Capacity: 15000BPH (500ml)
3. Applicable: plastic bottle 300ml-1000ml
4. Machine electric brand: Siemens, Mitsubishi, Schneider
5. The Machine power:5.6kw
7. Machine weight: 5000kg
7. The Machine includes functions: filling, sealing.
8. Application: juice,pulp juice
| 型号 Model | RCGF32-32-10 |
| 生产能力（瓶/小时） Production capacity(bottle/hour) | 12000-15000 |
| 适合的瓶子形状 Suitable bottle shape | PET瓶子方形或圆形 PET bottle square or round |
| 瓶子直径（毫米） Bottle diameter（mm） | φ50-φ100 |
| 瓶高（毫米） Bottle height（mm） | 50-320 |
| 压缩空气压力（兆帕） Compressed air pressure(Mpa) | 0.3-0.7 |
| 洗涤介质 Washing medium | 无菌水 Purified water |
| 洗涤水压力（兆帕） Washing water pressure(MPa) | 0.06-0.2 |
| 总功率（千瓦） Total power(KW) | 5.6 |
| 外形尺寸（毫米） Overall dimensions(mm) | 3600*2500*2400 |
| 重量（公斤） Weight(kg) | 5000 |
Washing Section – RCGF32-32-10 Juice Filling Machine
Our 32-32-10 juice filling system incorporates an innovative triple-stage rinsing process that delivers exceptional cleaning performance. The sequential air-water-air purification module ensures complete sterilization, effectively removing all contaminants and residues from containers prior to filling operations. This sophisticated cleaning mechanism combines high-pressure air jets with temperature-controlled water (maintained at 85°C or higher) and concludes with a final air drying cycle, guaranteeing bottle interiors meet the strictest hygiene standards.

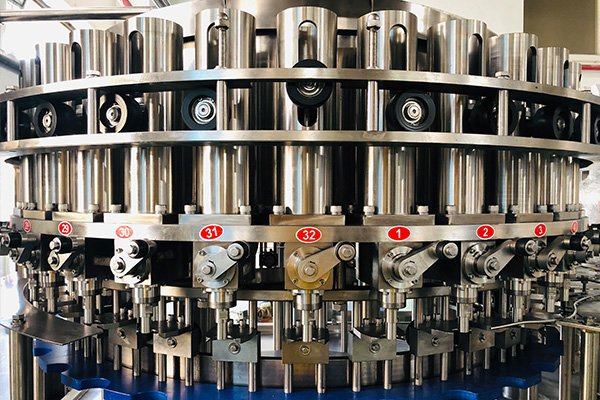

Filling Section – RCGF32-32-10 Juice Filling Machine
Equipped with 32-nozzle volumetric filling, the 32-32-10 machine delivers ±0.3% accuracy for juices from thin (water-like) to viscous (pulp-heavy). Its anti-drip PLC-controlled valves and nitrogen flushing prevent oxidation, preserving freshness & vitamins. Capacity: 15,000 bottles/hour (500ml PET).

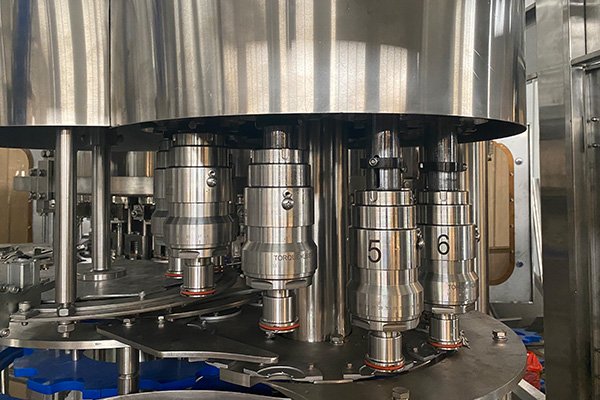

Capping Section – RCGF32-32-10 Juice Filling Machine
The 32-32-10 juice production line’s servo-driven capper handles screw caps, snap lids, and aluminum seals at 32 caps/minute with <1% defect rate. Features torque control (±5% accuracy) and 304 stainless steel construction for leak-proof, long-shelf-life packaging. Compatible with hot-fill & aseptic processes.
