Description

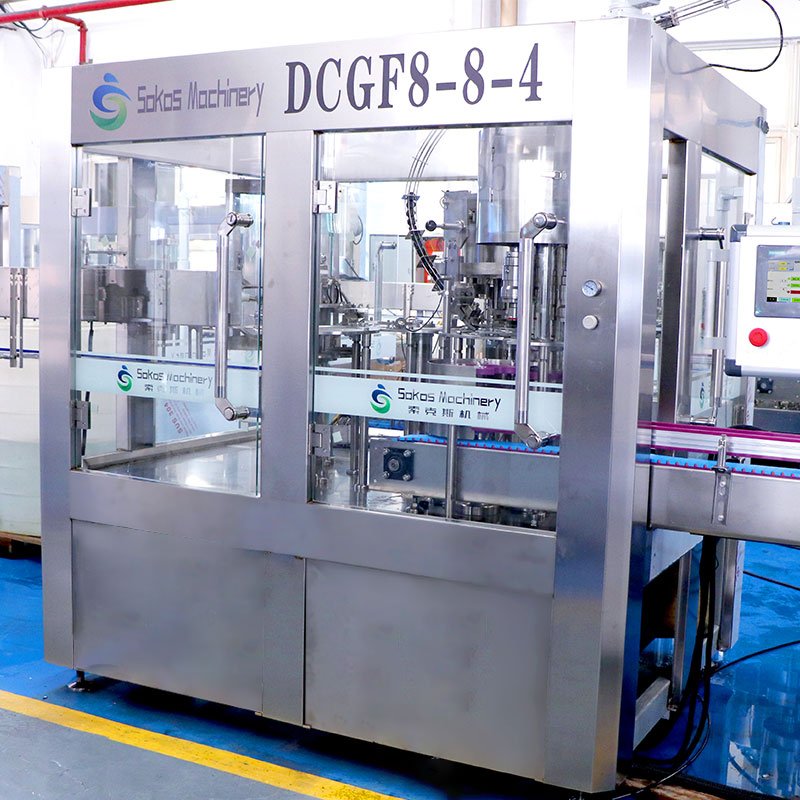

DCGF8-8-4 Carbonated Soda Water Plastic Bottle Filling machine1500-1800/phb
Technical parameter : carbonated beverage production line
| Model | DCGF8-8-4 | ||
| Production capacity (bottles/hour) |
1500-1800/phb | ||
| Suitable bottle shape | PET round or square shape | ||
| Bottle diameter (millimeters) |
Ф50-Ф 100mm | ||
| Bottle height (millimeters) |
50-320mm | ||
| Compressed air pressure (MPa) |
0.3-0.7Mpa | ||
| Washing medium | purified water | ||
| Washing water pressure (MPa) | >0.06Mpa <0.2Mpa | ||
| Total power (kW) | 3 | ||
| Overall dimensions (millimeters) | 2000x1500x2200 | ||
| Weight (kg) | 2000 | ||
water treatment
-
According to customer’s water source analysis report and the final water standard requirements ,we will suggest customer to choose the suitable water treatment plants.
Beverage Mixing System
- Carbonated beverage mixing system structure reasonable, mix precision is high, CO2 mixes fully, has two times of cooling, two carbonation merits. It main suitable for kinds of carbonated drink’s mix processing, also use in the paste drink, the fermentation drink and so on other soft drinks’ mix processing.
Main Features
- Friendly HMI with easy switch for multi-languages.
- The filling valve is designed with the tidy and safe valve body, the material quality can be fully guaranteed.

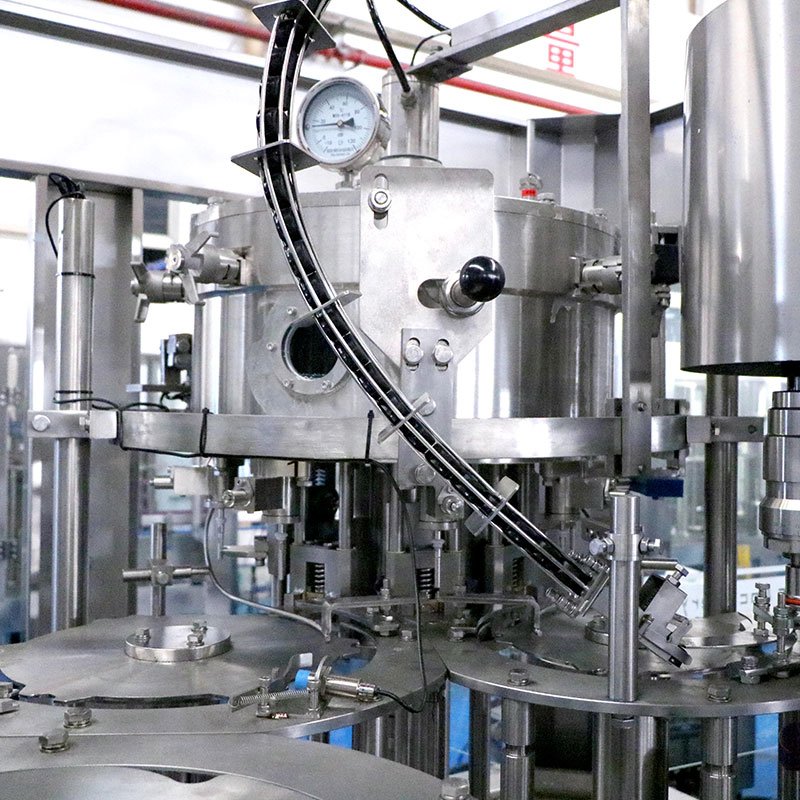

- Advanced electronic isobaric filling valves to be used for a variety of materials, higher filling temperatures, higher filling accuracy, and lower carbon dioxide consumption can be achieved.

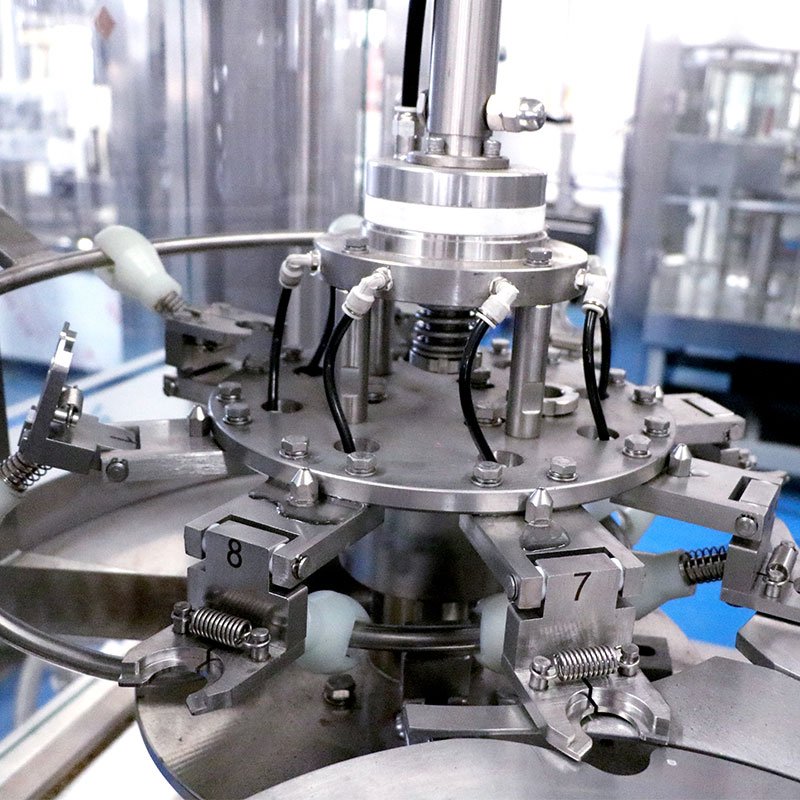

- The unique patented technology for bottle rinsing, no bottle without flushing at fixed stations, saving water for customers

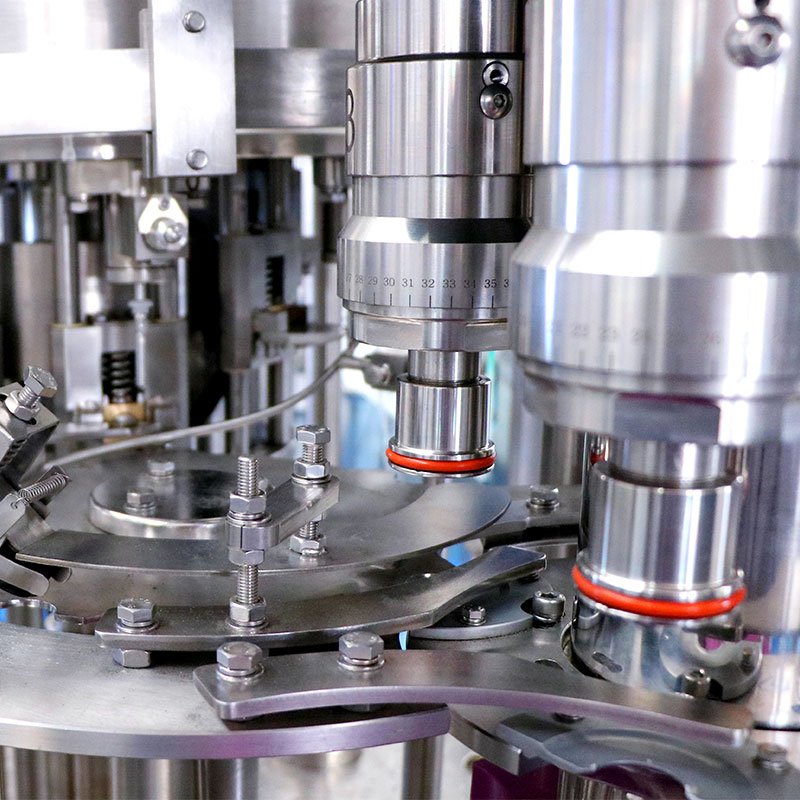

- Similar capping technology from Krones, Germany, each torque balance, high efficiency
Labeling Machine
- According to customer request and market demand ,we provide the better solution for the final product packagedesign,We have various kinds of options .like PVC sleeve label ,BOPP hot glue label,Adhesive stick label,Cold glue paper label .
Bottle Packing System
- We supply the different bottle package deisgn , Film package ,Carton box wrapper ,Film with tray package and so on .
Bottle Blowing System
- We supply the Complete Bottle Blowing System ,start from PET preform injection molding machine ,and Bottle blowing
machine,including air compressor system and water cooling system .
Why Choose Us
-
Direct Manufacturer: With over 10 years of experience in developing and manufacturing beverage and liquid food filling machines. Our plant spans 4000m², and we have independent property rights.
-
Professional Export Team: We offer stable product quality, fast delivery, and clear communication, ensuring smooth international transactions.
-
Custom Manufacturing: Our skilled technical team can design machines in various sizes and configurations to meet your unique specifications.
-
Strict Quality Control: We never ship equipment without customer approval. Every machine undergoes 24-hour testing before shipping, and we ensure quality is controlled at every production stage.
-
12-Month Warranty: All our equipment comes with a 12-month warranty, and we provide lifetime technical support for all products.
-
Fast Spare Parts Availability: We supply spare parts quickly and at cost price, minimizing downtime and ensuring operational continuity.
