Description
RCGF14-12-5 3500BPH 300-1000ml Small Juice Filling Machine
Product Description
Automatic Small Juice Filling Machine
1. Model RCGF14-12-5
2. Capacity: 3500BPH (500ml)
3. Applicable: plastic bottle 300ml-1000ml
4. Machine electric brand: Siemens, Mitsubishi, Schneider
5. The Machine power:3.1kw
7. Machine weight: 2500kg
7. The Machine includes functions: filling, sealing.
8. Application: juice,pulp juice
| 型号 Model | RCGF14-12-5 |
| 生产能力（瓶/小时） Production capacity(bottle/hour) | 3000-3500 |
| 适合的瓶子形状 Suitable bottle shape | PET瓶子方形或圆形 PET bottle square or round |
| 瓶子直径（毫米） Bottle diameter（mm） | φ50-φ100 |
| 瓶高（毫米） Bottle height（mm） | 50-320 |
| 压缩空气压力（兆帕） Compressed air pressure(Mpa) | 0.3-0.7 |
| 洗涤介质 Washing medium | 无菌水 Purified water |
| 洗涤水压力（兆帕） Washing water pressure(MPa) | 0.06-0.2 |
| 总功率（千瓦） Total power(KW) | 3.1 |
| 外形尺寸（毫米） Overall dimensions(mm) | 2400*1680*2400 |
| 重量（公斤） Weight(kg) | 2500 |
Washing
The RCGF14-12-5 small juice filling machine system features an advanced high-pressure rinsing module that ensures 99.9% sterilization before filling. Using food-grade sanitizers and automatic bottle inversion, it removes contaminants for safe, hygienic packaging. Ideal for cold-pressed juices, NFC, and dairy beverages, this process meets FDA & ISO standards while reducing water waste.

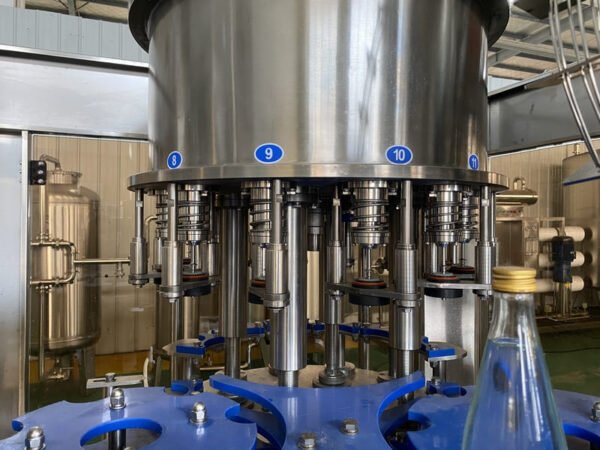

Filling
Precision volumetric filling technology in the 14-12-5 machine guarantees ±0.5% accuracy for juices, smoothies, and viscous liquids. With anti-drip nozzles and PLC-controlled flow, it minimizes oxidation and preserves freshness & vitamins. Compatible with PET/glass bottles (330ml-1L), this system boosts output to 3,500 bottles/hour without splashing or foaming.

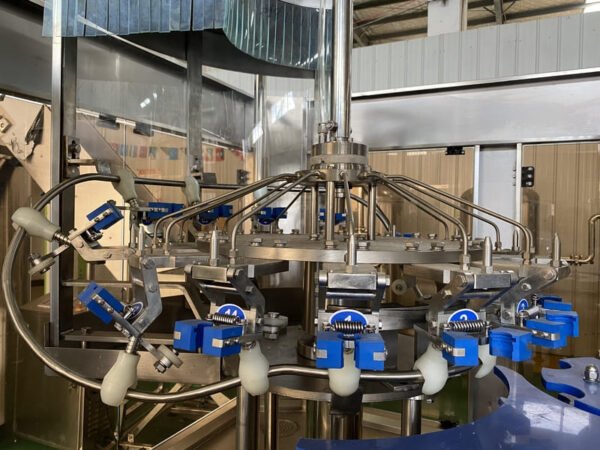

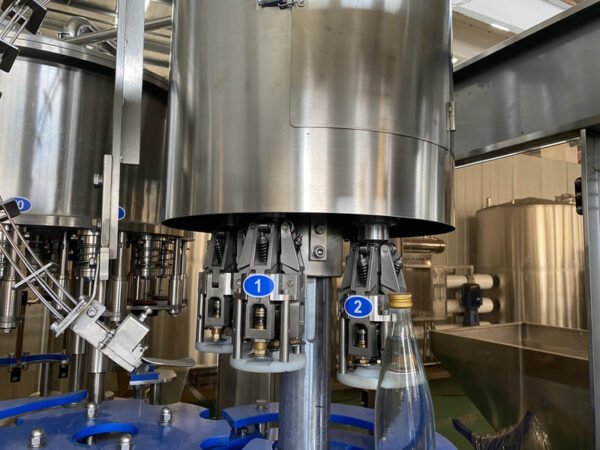

Capping
The 14-12-5’s dual-axis rotary capper secures screw caps, snap lids, and aluminum seals at 12 caps/minute. Its torque-control system prevents overtightening while ensuring leak-proof seals for extended shelf life. Made of 304 stainless steel, this module supports hot-fill and aseptic packaging requirements.
