Description

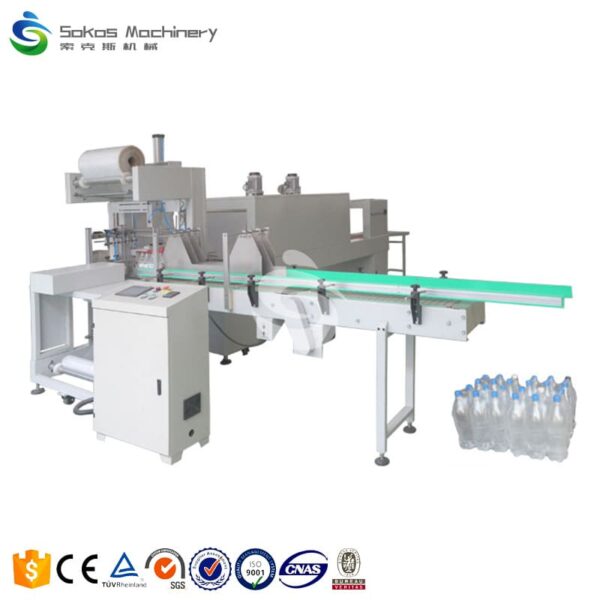

Sokos-150 L-Type Fully Automatic Heat Shrink Packaging Machine
Product Feature
| Sokos-150 Fully Automatic Heat Shrink Film Packaging Machine | ||
| 1 | Dimensions | 5850×3500×1600(mm) |
| 2 | Maximum package size | 420×300×350(height)(mm) |
| 3 | Maximum sealing length | 650mm |
| 4 | Conveyor belt level | 950±30mm |
| 5 | Production speed | 6-10 packages/minute(Min) |
| 6 | Power supply | 50HZ/380V three-phase five-wire system |
| 7 | Working air pressure | ≥ 0.6Mpa |
| 8 | Power | 26KW/16KW |
| 9 | Total weight | 1600KG |
| 10 | Scope of application | Packaging materials are cans, glass bottles, PET bottles, etc. |
| 11 | Applicable materials | beer, beverage, juice, milk, food, medicine and other industries |

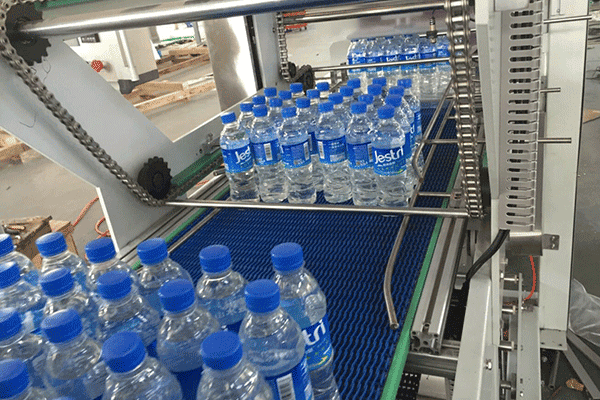

Transport System
The heat shrink packaging machine features a smooth and stable transport system, equipped with high-quality conveyor belts and precision-driven motors. The transport speed is adjustable to match different production line speeds, ensuring seamless integration with upstream and downstream equipment. The stainless steel frame offers durability and corrosion resistance, ideal for long-term industrial use. Smooth product transfer minimizes the risk of jams or misalignment during packaging.

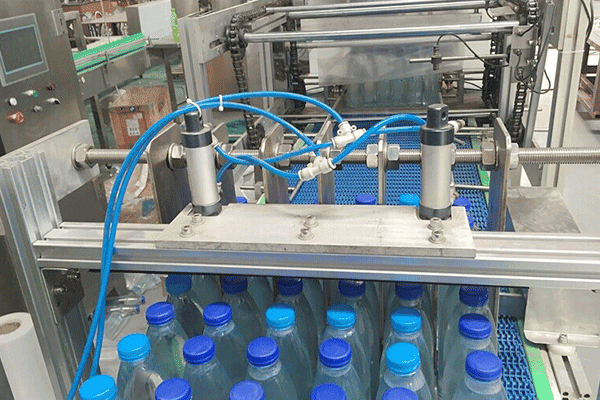

Bottle Separating and Conveying
The automatic bottle separating system is designed to space and align products accurately before sealing. Heat shrink packaging machine uses synchronized guiding rails and pushers to ensure consistent gaps between bottles or products. This prevents crowding and overlapping, which is crucial for precise film wrapping and sealing. The system can adapt to different bottle sizes and shapes with easy adjustments, improving flexibility and reducing downtime during changeovers.

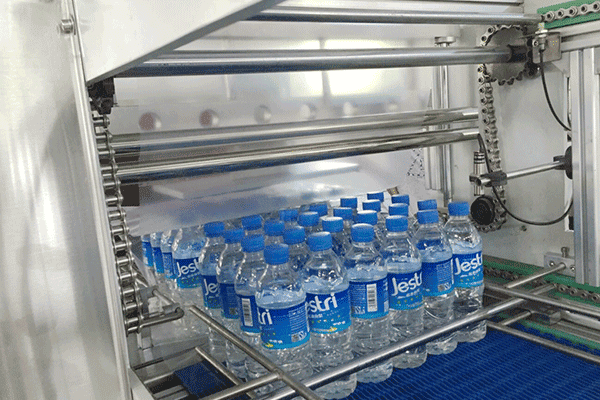

Sealing and Cutting (L-Type Sealing)
The L-type sealing unit features a Teflon-coated cutting blade that delivers clean, strong, and consistent seals. Precise temperature control ensures smooth sealing without wrinkles, film sticking, or burning. A built-in safety sensor protects both products and operators during operation. The system handles PE, POF, and PVC shrink films with ease, tightly wrapping the product before it enters the shrink tunnel.
