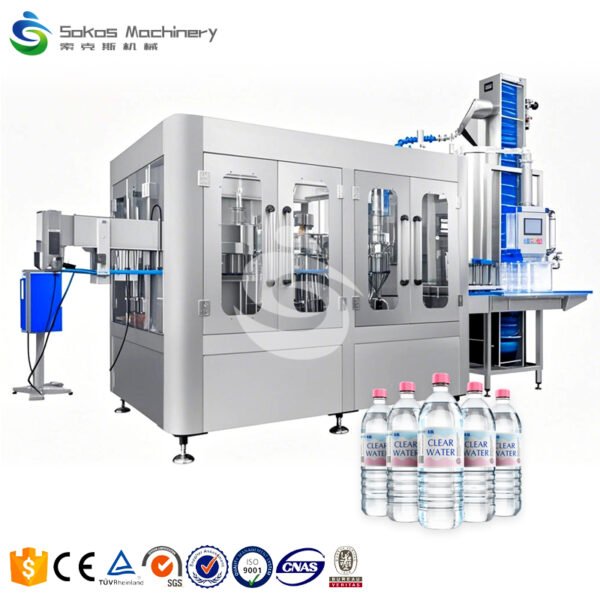

CGF14-12-5 Fully Automatic 300-1000ml Plastic Bottle 4000/phb Pure Water Filling Machine

The machine is used for producing drinking water in PET bottle, such as pure water, mineral water,natural water etc.Adopting hanging-neck technology,it can transfer the plastic bottle more stably and faster. One machine can finish washing bottle, filling and capping three processes, sanitary and high-efficiency,High-quality filling valve guarantee the filling level precision.

Facebook
Twitter
LinkedIn

Description

High-Performance 300ml-1000ml Sokos Bottle Filling Machine

plastic bottle filling machine

Product Description

Automatic Sokos Bottle Filling Machine

1. Model CGF14-12-5
2. Capacity: 5000BPH (500ml)
3. Applicable: plastic bottle 300ml-1000ml
4. Electric brand: Siemens, Mitsubishi, Schneider
5. Power: 5.87kw
7. Weight: 6800kg
7. Machine includes functions: filling, sealing.
8. Application: beverage, water, juice, oil.

ModelCGF8-8-4CGF14-12-5CGF18-18-6CGF24-24-8CGF32-32-10CGF40-40-12CGF50-50-15
Capacity (BPH)1000-20003000-50006000-80008000-1200012000-1500016000-2000020000-24000
Power supply2.2kw2.42 KW3.12 KW3.92 KW3.92 KW5.87 KW7.87 KW
Overall dimension1830x160x20502360×1770×27002760×2060×27002800×2230×27003550×2650×27004700×3320×27005900×4150×2700
Weight (KG)2100250035004200550068007600
water filling line
Sokos Water Filling Machines

Automatic Water Filling Machine - Water Filling Line with Advanced Bottle Washing System

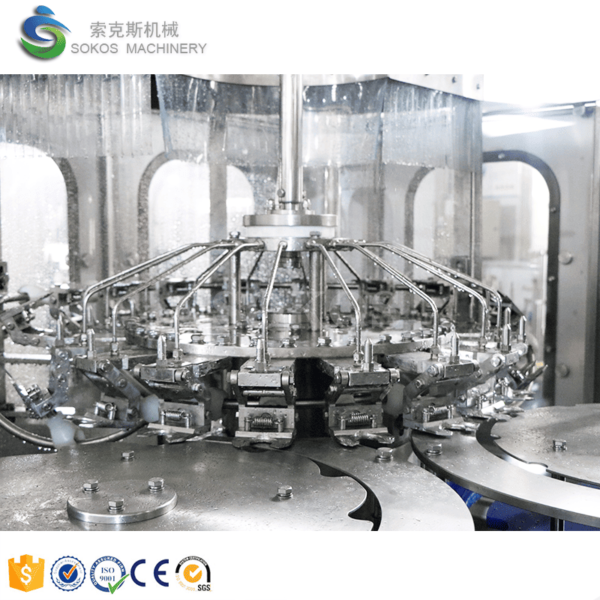

  1. Smooth Bottle Transfer: The air conveyor connects directly to the bottle dial, enabling consistent, smooth bottle flow.

  2. Robust Flushing Head: The full stainless steel flushing head features a water spray injection design, enhancing cleaning efficiency and reducing water consumption.

  3. Minimized Bottle Contact: Stainless steel grippers equipped with plastic pads reduce bottle-to-bottle contact during washing, protecting the bottles.

  4. Long-Lasting Performance: The stainless steel cleaning pump ensures reliable operation and extended durability, even under demanding conditions.

Water Filling Line with Precision Filling and Cleaning Features

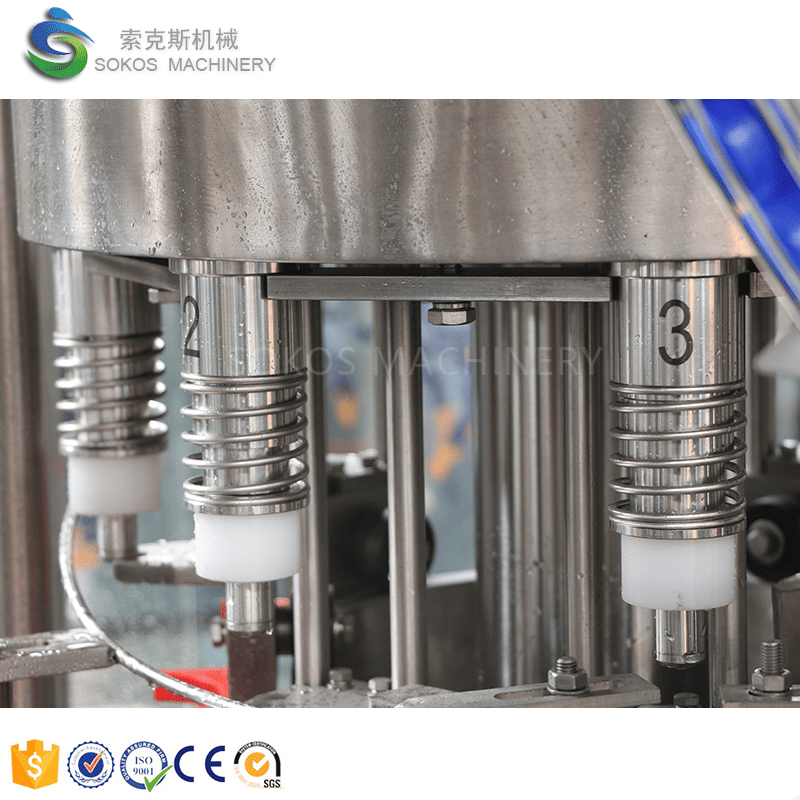

  1. Accurate Volume Control: The high-precision filling nozzle ensures exact fills with adjustable volume settings, maintaining consistent liquid levels per pour.

  2. Premium Contact Surfaces: All liquid-contact parts and tanks are manufactured from high-quality materials and feature polished surfaces to prevent residue buildup, ensuring effortless, thorough cleaning.

  3. Stainless Steel Filling Pump: Constructed from stainless steel, the filling pump delivers reliable, smooth operation and sustained long-term performance.

  4. Optimized Rinsing Nozzles: High-efficiency rinsing nozzles provide comprehensive cleaning coverage while significantly reducing water usage during the rinse cycle.

Sokos Water Filling Machines
Sokos Water Filling Machines

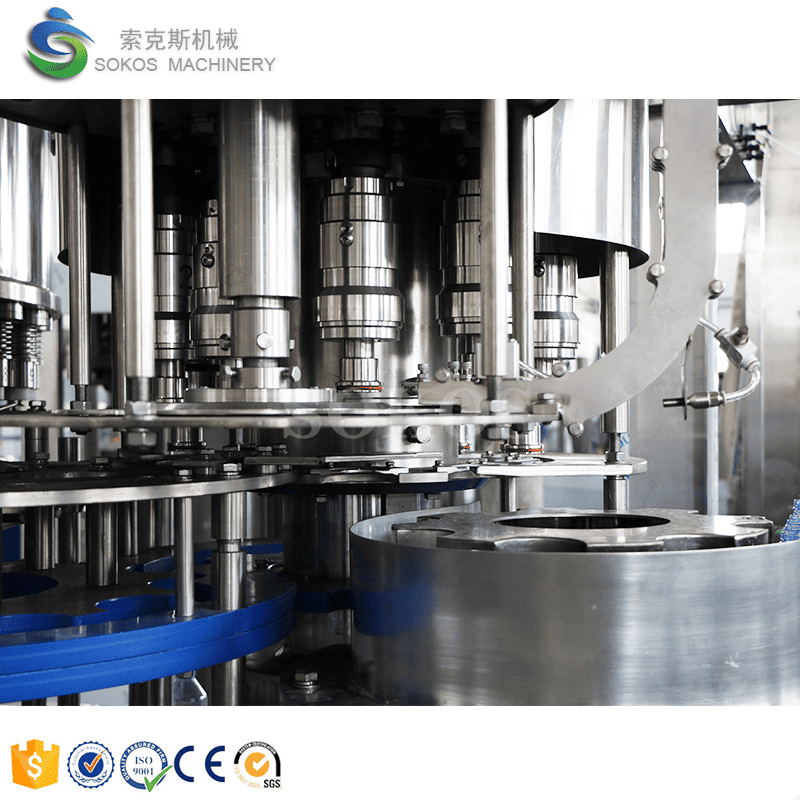

Automatic Bottling Filling Machine - Water Filling Line with Precision Capping System

  1. Electromagnetic Capping with Collision Control: The electromagnetic capping head incorporates pressure relief, minimizing bottle collisions during the capping process.

  2. Missing Bottle Safeguard: The system detects missing bottles and prevents cap placement, ensuring operational integrity.

  3. Automatic Missing Bottle Stop: Operation halts automatically if a bottle is absent, preventing waste and downtime.

  4. High-Reliability Capping: Ensures stable, consistent capping performance with a defect rate of ≤ 0.15%.

Why Choose Us

  • Direct Manufacturer: With over 10 years of experience in developing and manufacturing beverage and liquid food filling machines. Our plant spans 4000m², and we have independent property rights.

  • Professional Export Team: We offer stable product quality, fast delivery, and clear communication, ensuring smooth international transactions.

  • Custom Manufacturing: Our skilled technical team can design machines in various sizes and configurations to meet your unique specifications.

  • Strict Quality Control: We never ship equipment without customer approval. Every machine undergoes 24-hour testing before shipping, and we ensure quality is controlled at every production stage.

  • 12-Month Warranty: All our equipment comes with a 12-month warranty, and we provide lifetime technical support for all products.

  • Fast Spare Parts Availability: We supply spare parts quickly and at cost price, minimizing downtime and ensuring operational continuity.
