Description
RCGF50-50-15 20000BPH 300-1000ML Sokos Juice Filling Line
Product Description
Automatic Sokos Juice Filling Line
1. Model RCGF50-50-15
2. Capacity: 20000BPH (500ml)
3. Applicable: plastic bottle 300ml-1000ml
4. Machine electric brand: Siemens, Mitsubishi, Schneider
5. The Machine power:9kw
7. Machine weight: 8500kg
7. The Machine includes functions: filling, sealing.
8. Application: juice,pulp juice
| 型号 Model | RCGF50-50-15 |
| 生产能力（瓶/小时） Production capacity(bottle/hour) | 18000-20000 |
| 适合的瓶子形状 Suitable bottle shape | PET瓶子方形或圆形 PET bottle square or round |
| 瓶子直径（毫米） Bottle diameter（mm） | φ50-φ100 |
| 瓶高（毫米） Bottle height（mm） | 50-320 |
| 压缩空气压力（兆帕） Compressed air pressure(Mpa) | 0.3-0.7 |
| 洗涤介质 Washing medium | 无菌水 Purified water |
| 洗涤水压力（兆帕） Washing water pressure(MPa) | 0.06-0.2 |
| 总功率（千瓦） Total power(KW) | 9 |
| 外形尺寸（毫米） Overall dimensions(mm) | 4500*3300*2400 |
| 重量（公斤） Weight(kg) | 8500 |

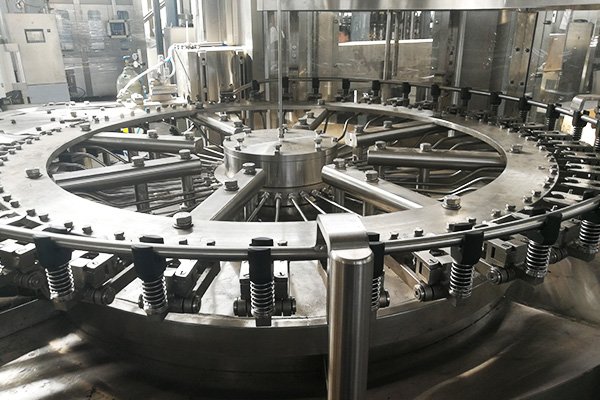

Washing Section – RCGF50-50-15 Juice Filling Machine
The RCGF50-50-15 features sterilization process combining ultrasonic pre-wash, reverse osmosis water rinse, and steam sanitization. Our proprietary 360° rotating nozzle system achieves microbial reduction while using 30% less water than standard systems. The auto-reject function instantly removes contaminated bottles, ensuring only pristine containers proceed to filling. Ideal for organic juices and probiotic beverages requiring ultra-clean environments.

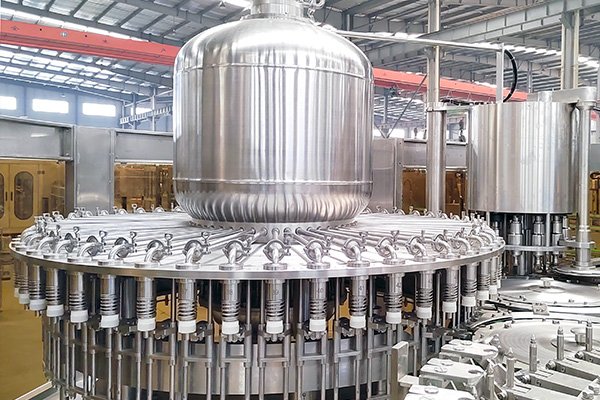

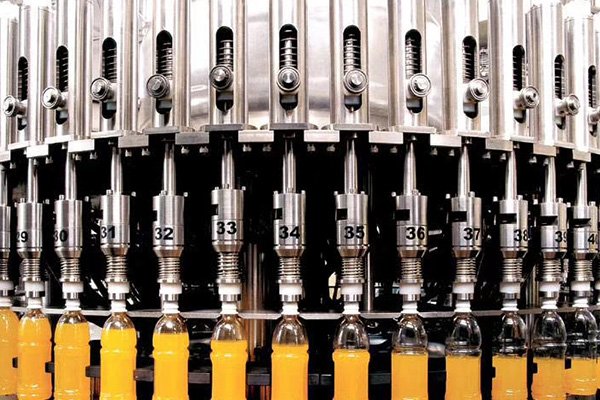

Filling Section – RCGF50-50-15 Juice Filling Machine
Sokos juice filling line with 50 servo-controlled filling heads, this system delivers ±0.1% volume accuracy at 20,000 bottles/hour capacity. Key innovations:
• Dual-temperature zones (4-85°C) for sensitive formulations
• Anti-foam technology for carbonated juice products
• Live brix adjustment during operation
• Quick-release nozzles (5-minute format change)

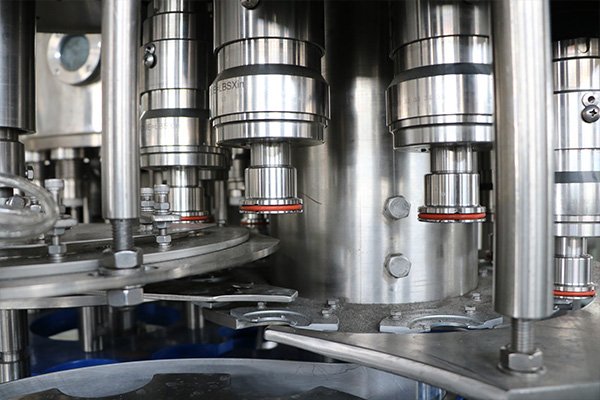

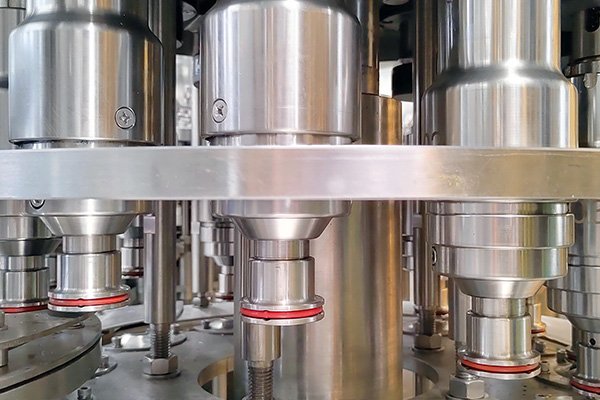

Capping Section – RCGF50-50-15 Juice Filling Machine
The 15-head robotic capper sets new industry standards with:
• Laser-guided cap alignment (0.01mm precision)
• Six-axis torque control for 25+ cap varieties
• Integrated vacuum check for perfect seals
• Predictive maintenance alerts via IoT sensors
