5 Gallon Water Dispenser QGF-100 | Automatic Barrel Filling Machine
The QGF-type barreled water producing line serves as the core equipment in 5-gallon drinking water production. It offers an ideal solution for producing mineral water, distilled water, and purified water. We build the machine using high-quality stainless steel, making it easy to clean and resistant to corrosion. We use SIEMENS and OMRON brands for the main electrical components, while the pneumatic parts come from AIRTAC. For barrel rinsing, we equip both the inner and outer shower nozzles with specialized technology from an American sprayer company. With its compact structure and advanced automation, the machine delivers reliable and efficient performance. Our fully automatic system integrates mechanical, electrical, and pneumatic components into one streamlined solution.
| Model | QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-900 |
| Filling heads | 1 | 2 | 3 | 5 | 6 |
| Volume(L) | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Capacity(b/h) | 100 | 300 | 450 | 600 | 900 |
| Gas consumption (m3/min) | 0.37 | 0.6 | 0.8 | 1 | 1.5 |
| Moto power (kw) | 1.38 | 3.8 | 5.6 | 7.5 | 9.75 |
| Weight(kg) | 680 | 1500 | 2100 | 3000 | 3500 |
| Size(W*L*H)(m) | 0.5*4.0*1.5 | 0.9*4.0*1.5 | 1.3*4.0*1.5 | 1.8*4.0*1.5 | 2.4*4.0*1.5 |

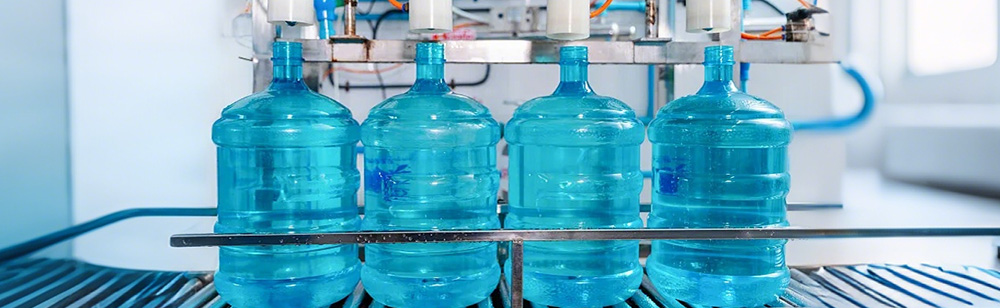

The 5 Gallon Water Dispenser QGF-100 is a fully automatic barrel water filling machine designed for producing large-capacity bottled water such as purified or mineral water. It integrates barrel rinsing, filling, and capping into one streamlined process, significantly improving efficiency and reducing manual labor.
Built with high-quality stainless steel, the QGF-100 ensures durability, hygiene, and corrosion resistance. Controlled by a reliable PLC system with a user-friendly touchscreen interface, the machine offers precise filling levels, secure capping, and easy operation. It is capable of processing up to 100 barrels per hour, making it ideal for small to medium-sized water bottling businesses.
Whether you’re starting a new water plant or upgrading existing equipment, the QGF-100 offers a cost-effective and efficient solution for producing clean, safe, and ready-to-drink 5-gallon bottled water.
Decapping machine
The Automatic Cap Remover Machine is specially designed for removing caps from 5-gallon water bottles. It features easy operation, low maintenance, and stable performance.
-
Compact linear structure for easy installation and maintenance.
-
Built with durable SUS304 stainless steel for hygiene and corrosion resistance.
-
Requires connection to an air compressor for compressed air supply.
Outside Wshing Machine
Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.

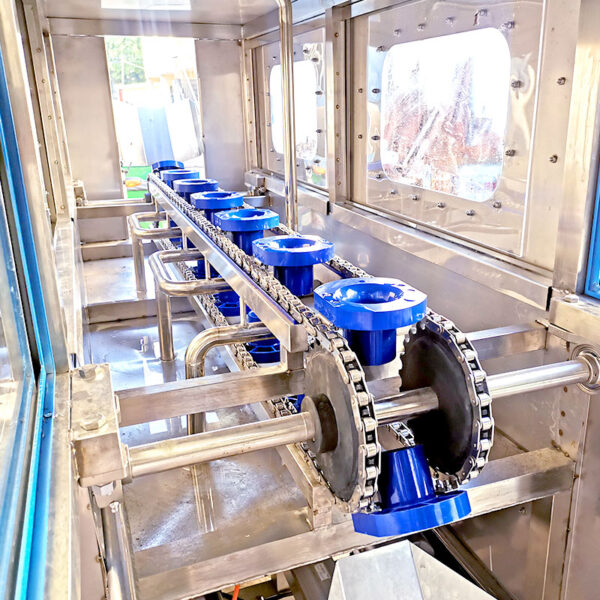

Wshing Parts
We use 304/316 stainless steel to make all rinse heads and design them with an injection-style water spray to ensure thorough cleaning while reducing water consumption.
Equip the 304/316 stainless steel bottle grippers with plastic pads to minimize bottle collisions and protect the containers during washing.
Also build the washing pump with 304/316 stainless steel to ensure long-lasting durability and strong corrosion resistance.
Filling Parts
Reverse osmosis uses membrane separation technology with the highest filtration accuracy, reaching 0.0001 μm. It filters out all substances in tap water, including minerals and trace elements, making the water directly drinkable. The membrane intercepts impurities such as soluble solids, organic matter, colloids, and bacteria, then concentrates and removes them through the rejection stream. A single-stage reverse osmosis system can remove more than 97% of dissolved solids from raw water.
Why Choose Us
-
Direct Manufacturer: With over 10 years of experience in developing and manufacturing beverage and liquid food filling machines. Our plant spans 4000m², and we have independent property rights.
-
Professional Export Team: We offer stable product quality, fast delivery, and clear communication, ensuring smooth international transactions.
-
Custom Manufacturing: Our skilled technical team can design machines in various sizes and configurations to meet your unique specifications.
-
Strict Quality Control: We never ship equipment without customer approval. Every machine undergoes 24-hour testing before shipping, and we ensure quality is controlled at every production stage.
-
12-Month Warranty: All our equipment comes with a 12-month warranty, and we provide lifetime technical support for all products.
-
Fast Spare Parts Availability: We supply spare parts quickly and at cost price, minimizing downtime and ensuring operational continuity.
