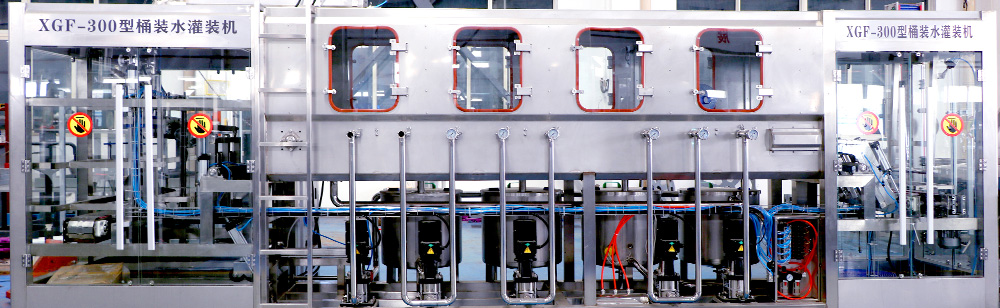

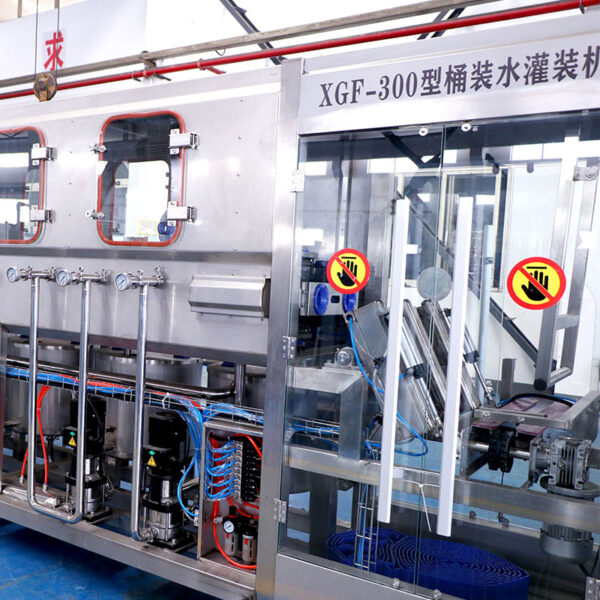

Automatic QGF-300 Filling Machine 5 Gallon Water Plant
The Automatic QGF-300 Filling Machine is a key component of any efficient 5 Gallon Water Plant. It combines barrel rinsing, precise filling, and reliable capping in one fully automated system. Constructed from durable SUS304 stainless steel and controlled by an advanced PLC system, this machine ensures stable operation and processes up to 300 barrels per hour. Designed for mineral, purified, and distilled water, the QGF-300 guarantees hygienic production and consistent quality, making it an ideal choice for modern 5 Gallon Water Plant setups.
| Model | QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-900 |
| Filling heads | 1 | 2 | 3 | 5 | 6 |
| Volume(L) | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Capacity(b/h) | 100 | 300 | 450 | 600 | 900 |
| Gas consumption (m3/min) | 0.37 | 0.6 | 0.8 | 1 | 1.5 |
| Moto power (kw) | 1.38 | 3.8 | 5.6 | 7.5 | 9.75 |
| Weight(kg) | 680 | 1500 | 2100 | 3000 | 3500 |
| Size(W*L*H)(m) | 0.5*4.0*1.5 | 0.9*4.0*1.5 | 1.3*4.0*1.5 | 1.8*4.0*1.5 | 2.4*4.0*1.5 |
High-speed 300BPH output, integrates rinsing, filling, and capping. Made of SUS304, hygienic and durable. PLC control, anti-drip valves, easy to maintain. Fits 3 & 5 gallon bottles. Supports full line integration for efficient water production.
Decapping machine
The Automatic Cap Remover Machine is specially designed for removing caps from 5-gallon water bottles. It features easy operation, low maintenance, and stable performance.
-
Compact linear structure for easy installation and maintenance.
-
Built with durable SUS304 stainless steel for hygiene and corrosion resistance.
-
Requires connection to an air compressor for compressed air supply.
Outside Wshing Machine
Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.
Wshing Parts
We use 304/316 stainless steel to manufacture all rinse heads and design them with an injection-style water spray, ensuring thorough cleaning while saving water.
Equip the 304/316 stainless steel bottle grippers with plastic pads to minimize collisions and protect bottles during the washing process.
Also build the washing pump with 304/316 stainless steel to guarantee durability and strong resistance to corrosion.
Filling Parts
Reverse osmosis uses membrane separation technology with the highest filtration accuracy, reaching 0.0001 μm. It filters out all substances in tap water, including minerals and trace elements, making the water directly drinkable. The membrane intercepts impurities such as soluble solids, organic matter, colloids, and bacteria, then concentrates and removes them through the waste stream. A single-stage reverse osmosis system removes over 97% of the dissolved solids from raw water.
Why Choose Us
-
Direct Manufacturer: With over 10 years of experience in developing and manufacturing beverage and liquid food filling machines. Our plant spans 4000m², and we have independent property rights.
-
Professional Export Team: We offer stable product quality, fast delivery, and clear communication, ensuring smooth international transactions.
-
Custom Manufacturing: Our skilled technical team can design machines in various sizes and configurations to meet your unique specifications.
-
Strict Quality Control:We secure customer approval before shipping any equipment. Additionally, our team conducts a 24-hour test on every machine prior to delivery. Throughout the entire production process, we actively monitor and manage quality to ensure reliable performance and compliance with high standards.
-
12-Month Warranty: All our equipment comes with a 12-month warranty, and we provide lifetime technical support for all products.
-
Fast Spare Parts Availability: We supply spare parts quickly and at cost price, minimizing downtime and ensuring operational continuity.
