Description
Beer Filling Machine Isobaric BDCGF18-18-6 | 1200-1500BPH Capacity
This machine features a compact structure, user-friendly operation, and high automation. It supports quick bottle changeover via a star-wheel. All product-contact parts are made of high-quality SUS, anti-corrosive and easy to clean. Equipped with high-speed filling valves for accurate liquid levels and zero waste. The capping system uses a magnetic torque device for damage-free sealing. It includes an efficient cap sorter, safety overload protection, and smart functions like speed control, cap shortage check, and output counting. All electric and pneumatic components are from world-renowned brands.
| Model: | BGF14-12-5 | BGF18-18-6 | BGF24-24-8 | BGF32-32-10 | BGF40-40-12 |
| Production capacity(600ml) (B/H) | 2000-2500 | 2800-3000 | 4500-5000 | 6000-7000 | 8000-10000 |
| suitable bottle specification(mm) | φ=50-110 H=170 volume=200-2250ml | ||||
| Washing pressure(kg/cm2 ) | 2~3 | ||||
| Motor power(kw) | Main motor 2.2kw | Main motor 3kw | Main motor 3.8kw | Main motor 5.5kw | Main motor7.5kw |
| Overall dimensions (mm) | 2400×1650 ×2500 | 2400×1830 ×2400 | 3100×2200 ×2400 | 3800×2800 ×2900 | 4600×2800 ×2900 |
| Weight (kg) | 2500 | 3500 | 4000 | 6500 | 8500 |

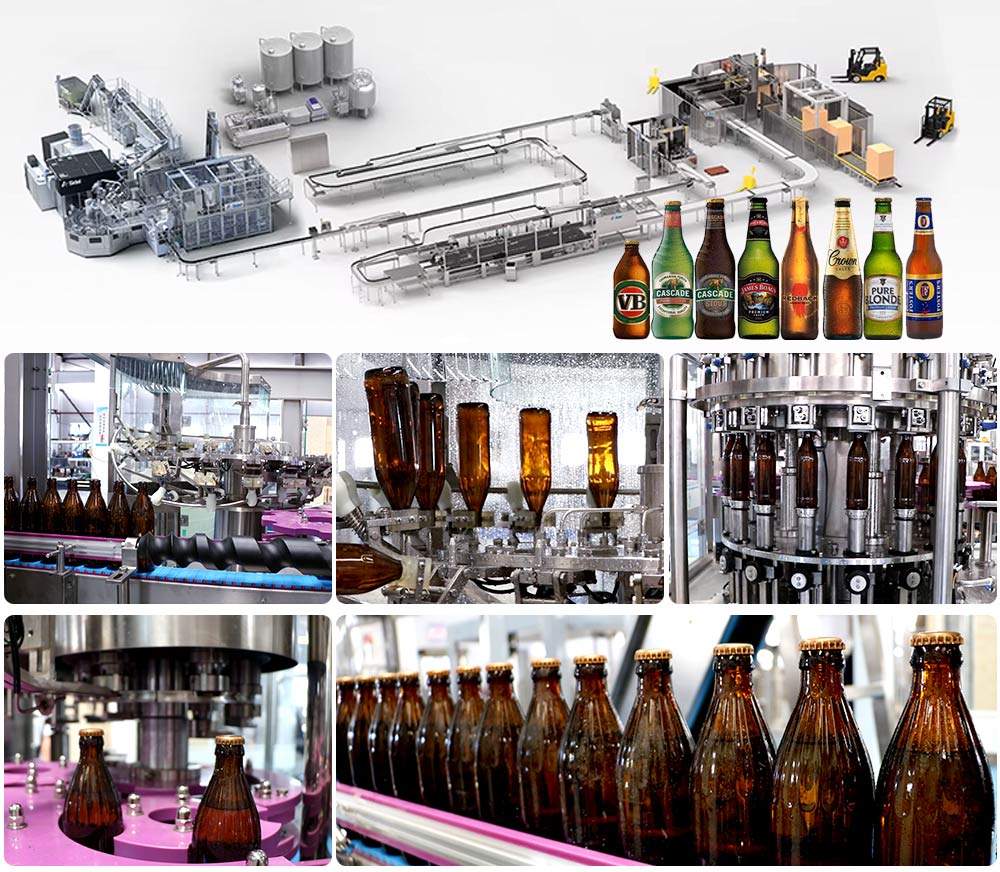

Working Process of BDCGF18-18-6 Beer Filling Machine Isobaric
-
Bottle Feeding

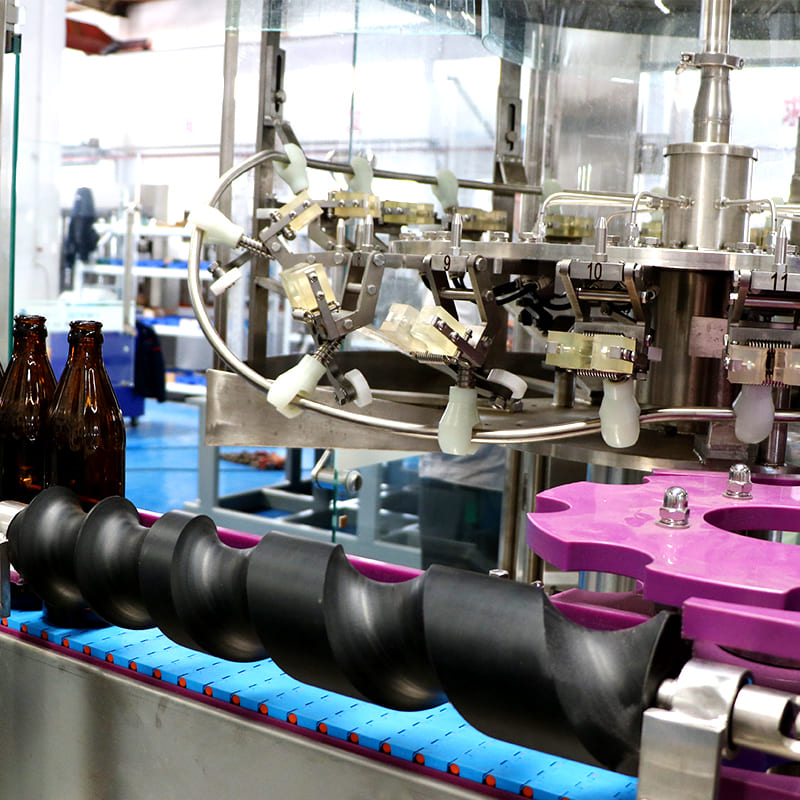

An air conveyor or bottle-in screw system delivers empty glass bottles into the machine and aligns them precisely for smooth transfer.Bottle Rinsing (18 heads)
The rinsing station clamps and inverts each bottle, then sprays clean or sterilized water inside to maintain hygiene. After rinsing, the system drains the bottles and rights them.Beer Filling (18 heads)

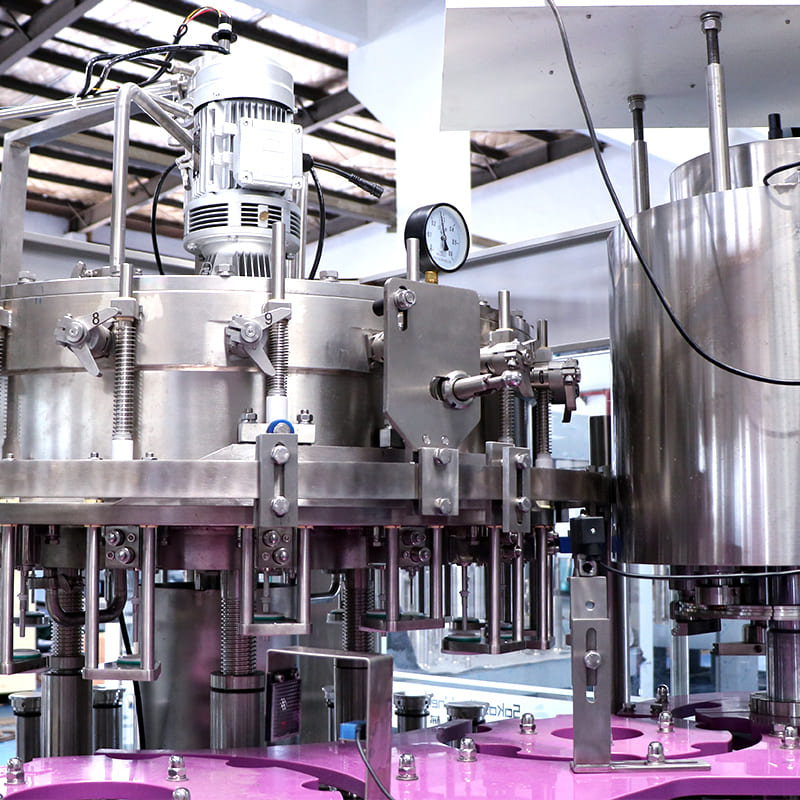

The PLC-controlled filling station pressurizes each clean bottle and fills it with beer via an isobaric system. This approach maintains precise liquid levels, prevents foaming and oxidation, and preserves beer quality.Capping (6 heads)

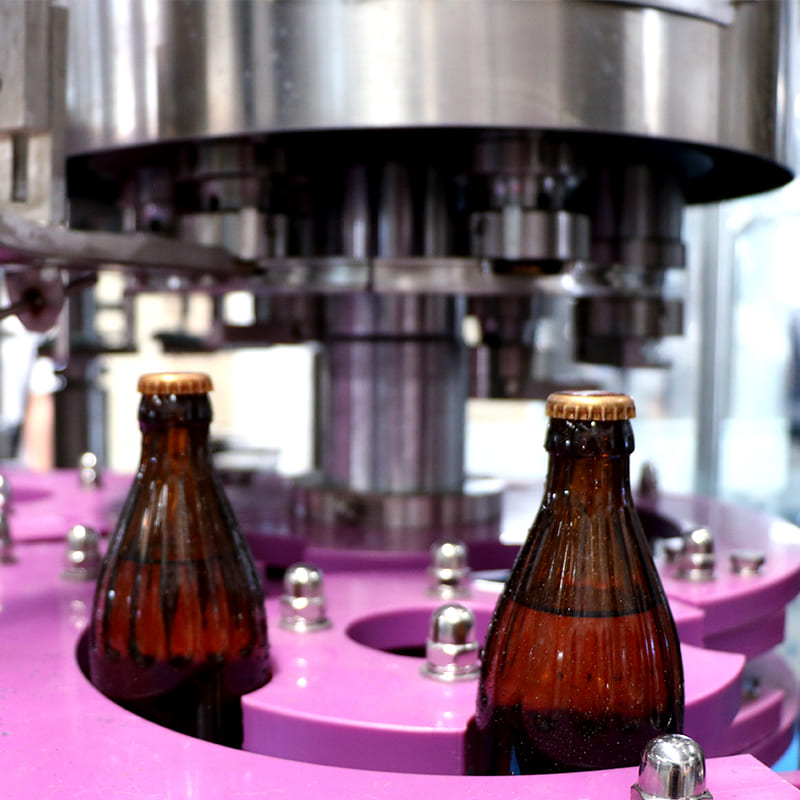

The capping unit places metal crown caps onto the filled bottles and tightens them to ensure leak-free, tamper-proof seals.Bottle Discharge

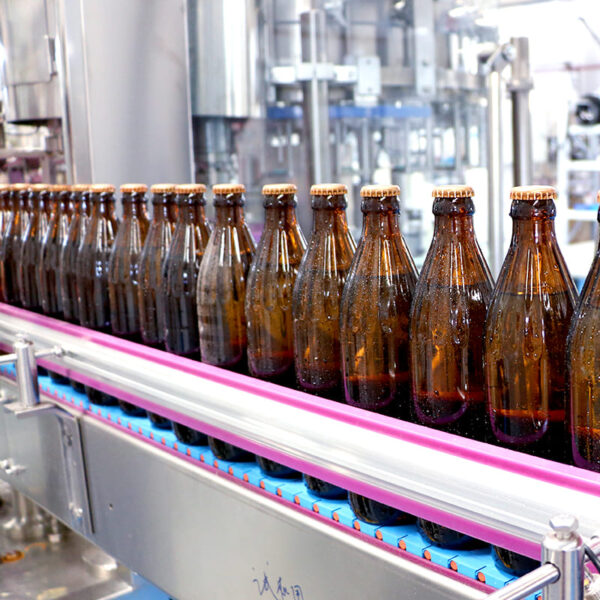

A bottle-out conveyor carries finished bottles out of the machine to labeling, packaging, or storage.Control System
Operators use the touchscreen-equipped PLC control panel to monitor every step, adjust parameters on the fly, and troubleshoot instantly.
Why Choose Us
-
Direct Manufacturer: With over 10 years of experience in developing and manufacturing beverage and liquid food filling machines. Our plant spans 4000m², and we have independent property rights.
-
Professional Export Team: We offer stable product quality, fast delivery, and clear communication, ensuring smooth international transactions.
-
Custom Manufacturing: Our skilled technical team can design machines in various sizes and configurations to meet your unique specifications.
-
Strict Quality Control: We never ship equipment without customer approval. Every machine undergoes 24-hour testing before shipping, and we ensure quality is controlled at every production stage.
-
12-Month Warranty: All our equipment comes with a 12-month warranty, and we provide lifetime technical support for all products.
-
Fast Spare Parts Availability: We supply spare parts quickly and at cost price, minimizing downtime and ensuring operational continuity.
